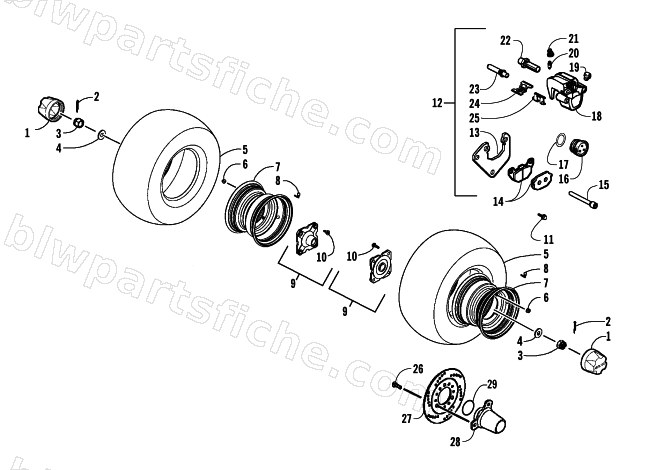

REAR WHEEL AND BRAKE ASSEMBLIES
2007 90 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-430 | CAP WHEEL SHAFT | 1 | $3.71 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3303-330 | NUT FLANGE CASTLE 14MM | 1 | $4.54 | |
| 4 | 3305-285 | WASHER 14MM | 1 | $3.02 | |
| 5 | 3303-428 | TIRE ASSY RR (KENDA) | 1 | $172.95 | |
| 6 | 3303-266 | NUT U FLANGE 10MM | 1 | $2.06 | |
| 7 | 3303-156 | RIM COMP RR WHEEL (SILVER) | 1 | $94.95 | |
| 8 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 9 | 3303-157 | CONNECTOR ASSY RR | 1 | $102.95 | |
| 10 | 3303-250 | BOLT CONNECTOR | 1 | $2.61 | |
| 11 | 3303-256 | BOLT FLANGE 8*28 | 1 | $2.61 | |
| 12 | 3303-568 | CALIPER ASSY RR | 1 | $180.79 | |
| 13 | 3303-469 | BRACKET RR | 1 | $20.63 | |
| 14 | 3304-567 | PAD COMP | 1 | $47.95 | |
| 16 | 3304-314 | PISTON (FOOT BRAKE) | 1 | $58.95 | |
| 17 | 3305-380 | SEAL PISTON (FOOT BRAKE) | 1 | $16.49 | |
| 19 | 3304-333 | PLUG | 1 | $1.95 | |
| 20 | 3304-302 | SCREW BLEEDER | 1 | $3.30 | |
| 21 | 3304-303 | CAP BLEEDER | 1 | $3.02 | |
| 22 | 3304-589 | BUSH BOOT PIN | 1 | $16.49 | |
| 23 | 3304-590 | BOOT B | 1 | $4.40 | |
| 24 | 3304-591 | SPRING PAD | 1 | $5.37 | |
| 25 | 3305-377 | DUST SEAL (FOOT BRAKE) | 1 | $4.13 | |
| 26 | 3303-253 | BOLT DISK | 1 | $3.57 | |
| 27 | 3303-162 | DISK RR BRAKE | 1 | $112.95 | |
| 28 | 3305-249 | BRACKET,BRAKE DISK | 1 | $82.95 | |
| 29 | 3305-298 | O-RING 30MM | 1 | $3.44 |
