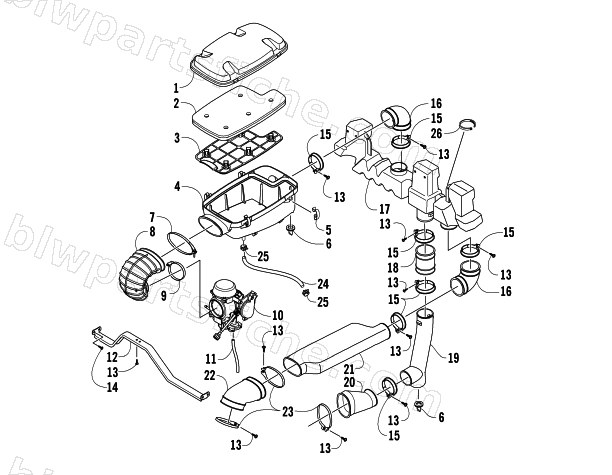

2007 Arctic Cat PROWLER 650 H1 AUTOMATIC 4X4 — AIR INTAKE ASSEMBLY
2007 PROWLER 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 2 | 0470-663 | FILTER, AIR | 1 | $42.95 | |
| 3 | 0470-516 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 4 | 0470-853 | AIR BOX,BOTTOM | 1 | $85.95 | |
| 5 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 6 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 7 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 8 | 0470-525 | BOOT, AIR CLEANER | 1 | $79.95 | |
| 9 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 10 | 0470-571 | CARB,CVK 36-AE (W/PUMPER) | 1 | $793.95 | |
| 11 | 0510-593 | HOSE,CARB DRAIN | 1 | $8.21 | |
| 12 | 1506-801 | BRACKET,MOUNT-AIR BOX-PAINTED BLACK | 1 | $37.95 | |
| 13 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 14 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 15 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 16 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 17 | 0413-101 | PLENIUM,AIR | 1 | $220.95 | |
| 18 | 0413-085 | BOOT,AIR IN | 1 | $30.95 | |
| 19 | 0413-100 | DUCT,AIR IN | 1 | $25.95 | |
| 20 | 0413-049 | BOOT, COOLING-BELT | 1 | $30.95 | |
| 21 | 0413-108 | DUCT,AIR OUT | 1 | $42.95 | |
| 22 | 0413-109 | BOOT,AIR OUT | 1 | $20.63 | |
| 23 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 24 | 0410-087 | HOSE,VENT-CRANKCASE | 1 | $16.49 | |
| 25 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
