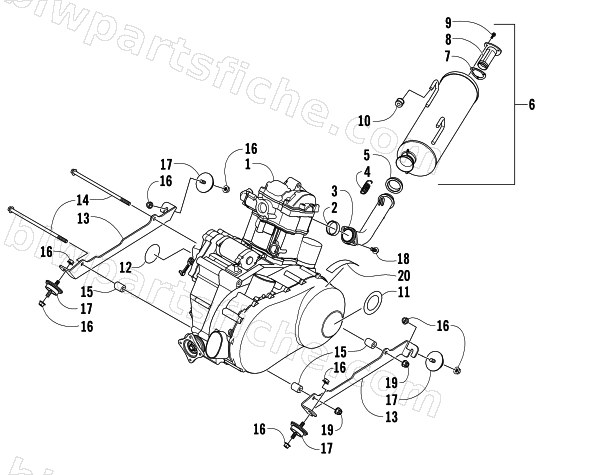

ENGINE AND EXHAUST
2007 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0437-072 | ENGINE A650F-B- H1(PRLR) W/BUSHINGS | 1 | $4,696.95 | |
| 2 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 3 | 0512-189 | PIPE,EXHAUST-BLACK | 1 | $135.95 | |
| 4 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 5 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 6 | 0512-191 | MUFFLER,BLACK | 1 | $509.95 | |
| 7 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 8 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 9 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 10 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 11 | 1411-176 | DECAL,"DURAMATIC" - ENGINE | 1 | $23.39 | |
| 13 | 1506-998 | BRACKET,ENGINE CRADLE RH-BLACK | 1 | $47.95 | |
| 13 | 1506-999 | BRACKET,ENGINE CRADLE LH-BLACK | 1 | $47.95 | |
| 14 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 15 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 16 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 17 | 0408-014 | MOUNT,ENGINE | 1 | $47.95 | |
| 18 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 20 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 |
