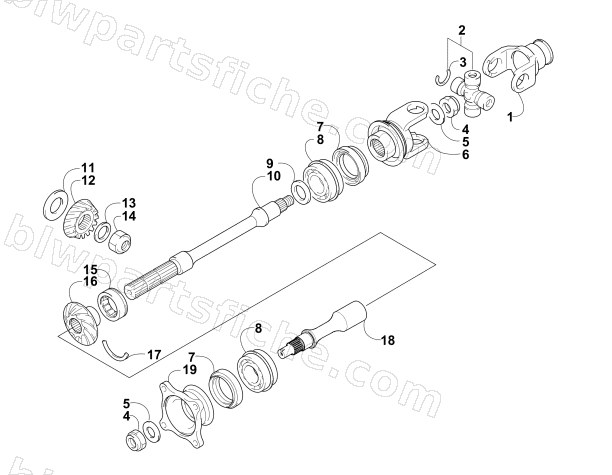

SECONDARY DRIVE ASSEMBLY

2007 PROWLER XT 650 H1 AUTOMATIC 4X4

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0819-063	YOKE,PROPELLER SHAFT-ASSY	1	$66.95
2	1402-164	CROSS, UNIVERSAL(20mm)-SET	1	$22.01
3	0423-450	RING,RETAINING-CROSS	1	$3.02
4	0827-013	NUT,HEX SHOULDER M16X1.5	1	$3.02
5	0828-020	WASHER, STEEL, 16.3 x 30 x 3	1	$3.30
6	0819-061	YOKE,DRIVE OUTPUT-FRONT ASSY	1	$69.95
7	0830-043	SEAL,OIL-DRIVEN SHAFT	1	$6.89
8	0832-017	R/B 0832-107	1	$125.95
9	0828-021	SHIM, 25 x 34 x .25	1	$2.47
9	0828-022	SHIM, 25 x 34 x .30	1	$8.21
9	0828-023	SHIM, 25 X 34 X 0.35 MM	1	$17.87
9	0828-024	SHIM,. 25 x 34 x .90	1	$17.87
9	0828-025	SHIM, 25 x 34 x .95	1	$17.87
9	0828-026	SHIM, 25 x 34 x 1.00	1	$17.87
9	0828-027	SHIM, 25 x 34 x 1.05	1	$17.87
9	0828-028	SHIM, 25 x 34 x 1.10	1	$16.49
9	0828-029	SHIM, 25 x 34 x 1.15	1	$17.87
10	0819-089	SHAFT,SECONDARY DRIVEN-FRONT	1	$217.95
11	0828-030	SHIM, 24 x 48 x .25	1	$4.54
11	0828-031	SHIM, 24 x 48 x .30	1	$4.54
11	0828-032	SHIM, 24 x 48 x .35	1	$17.87
11	0828-033	SHIM, 24 x 48 x .90	1	$5.92
11	0828-018	SHIM, 24 x 48 x .95	1	$4.54
11	0828-062	SHIM, 24 x 48 x 1.00	1	$17.87
11	0828-063	SHIM, 24 x 48 x 1.05	1	$17.87
11	0828-064	SHIM, 24 x 48 x 1.10	1	$17.87
11	0828-065	SHIM, 24 x 48 x 1.15	1	$19.25
12	0819-001	GEAR, (USE 0822-146-H1, 0822-147-H2)	1	$130.95
13	0828-019	WASHER,THRUST, SECONDARY TRANSMISSION	1	$8.21
14	0827-012	NUT,HEX COLLARED (M20 X1.5 )	1	$20.63
15	0832-016	BEARING, DRIVEN GEAR	1	$50.95
16	0819-002	GEAR,(USE 0822-146-H1, 0822-147-H2)	1	$180.95
17	0819-011	RING, DRIVEN BEARING	1	$17.87
18	0819-053	SHAFT, SECONDARY DRIVEN - REAR	1	$82.95
19	0819-005	FLANGE, OUTPUT JOINT - REAR, ASSEMBLY	1	$69.95
