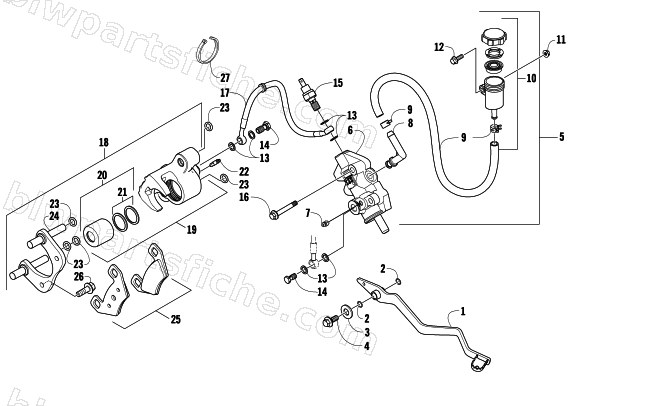

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — AUXILIARY BRAKE ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3313-478 | ASSY,DIRMC 5/8" BORE,45MM MOUNT,W/R RESV | 1 | $264.95 | |
| 1 | 3313-156 | LEVER,BRAKE-BLACK | 1 | $58.95 | |
| 2 | 3323-022 | O-RING,2-013 | 1 | $2.95 | |
| 3 | 3323-191 | WASHER,FLAT | 1 | $1.50 | |
| 4 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 7 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 8 | 1502-296 | HOSE ADAPTER SPOUT,90DEG-GROMMET SEAL | 1 | $24.77 | |
| 9 | 3313-489 | HOSE,REMOTE RES., W/CLIPS, DIRMC II (13. | 1 | $50.95 | |
| 10 | 1502-141 | REMOTE RESERVOIRSUBASSY& HSECLIP DIRMCII | 1 | $54.95 | |
| 11 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 12 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 13 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 14 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 15 | 3313-239 | SWITCH-BRAKE PRESSURE-BANJO | 1 | $54.95 | |
| 16 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 17 | 3313-315 | HOSE,BRAKE-SECONDARY | 1 | $82.95 | |
| 18 | 3323-157 | CALIPER,BRAKE-LH | 1 | $274.95 | |
| 19 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 20 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 23 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 24 | 1436-135 | Deluxe Tire Repair Kit - General Description=1436-135 - 1436-135 | 1 | $57.95 | |
| 25 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 26 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
