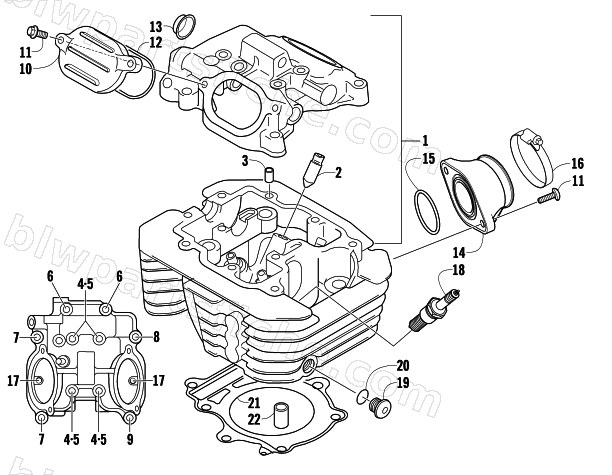

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — CYLINDER HEAD ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0808-012 | HEAD, CYLINDER - ASSEMBLY | 1 | $920.95 | |
| 3 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 4 | 0826-115 | SCREW,CAP HFH M#X#X# | 1 | $1.23 | |
| 5 | 0830-155 | SEAL,FASTENER | 1 | $3.16 | |
| 6 | 3304-918 | BOLT FLANGE SH M6x1.0x110 | 1 | $1.50 | |
| 7 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 8 | 3307-053 | BOLT FLANGE SH 6*40 | 1 | $2.75 | |
| 9 | 0826-136 | BOLT,M6X1.0X30 | 1 | $0.85 | |
| 10 | 0808-111 | CAP,INSPECTION COVER | 1 | $20.63 | |
| 11 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 12 | 0830-139 | ORING,INSPECTION COVER | 1 | $6.20 | |
| 13 | 3306-787 | PLUG HEAD | 1 | $13.73 | |
| 14 | 3323-030 | MANIFOLD,INTAKE | 1 | $45.95 | |
| 15 | 3323-145 | O-RING | 1 | $4.40 | |
| 16 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 17 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 18 | 0217-705 | SPARK PLUG(NGK CR8E) | 1 | $10.97 | |
| 19 | 3303-656 | BOLT SEALING 12MM | 1 | $4.13 | |
| 20 | 0830-051 | GASKET, OIL GALLERY,PLUG | 1 | $2.33 | |
| 21 | 0830-050 | GASKET, CYLINDER HEAD | 1 | $102.95 | |
| 22 | 0829-013 | DOWEL,SLEEVE,DIA 13x22 | 1 | $3.16 |
