2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — DRIVE TRAIN ASSEMBLY

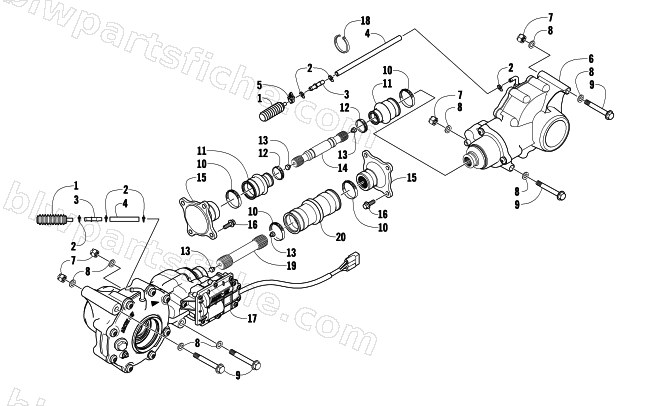

2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-170 | BREATHER TUBE RR GEAR ASSY | 1 | $12.35 | |
| 2 | 3323-149 | CLAMP,HOSE-DOUBLE WIRE | 1 | $1.50 | |
| 3 | 3323-150 | FITTING, BARB HOSE -INTAKE MANIFOLD | 1 | $1.92 | |
| 4 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 5 | 3323-152 | ROUTING CLIP,SNAP-IN | 1 | $1.92 | |
| 6 | 1502-316 | GEARCASE,REAR(3.1)-ASSEMBLY | 1 | $1,253.95 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 9 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 10 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 11 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 12 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 13 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 14 | 1402-234 | SHAFT,PROPELLER-REAR (500M) | 1 | $94.95 | |
| 15 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 16 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 1502-213 | GEARCASE,FRONT (3.1) - ASSY | 1 | $1,779.95 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 19 | 0402-963 | SHAFT,PROPELLER | 1 | $56.95 | |
| 20 | 0402-954 | BOOT,REAR DRIVE (M) | 1 | $17.87 |
