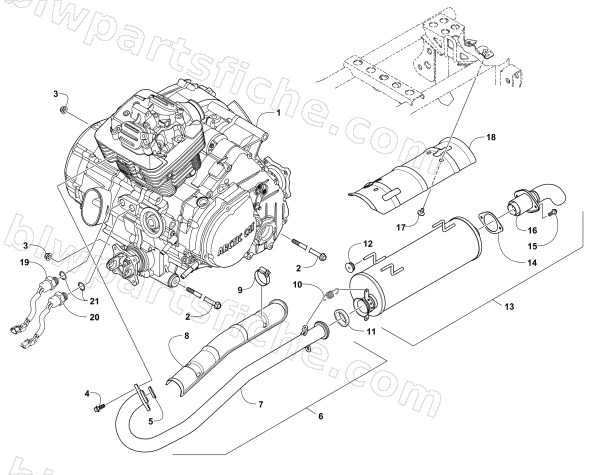

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — ENGINE AND EXHAUST
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-400 | ENGINE,366 | 1 | $4,355.95 | |
| 2 | 3323-174 | BOLT,HFH M10-1.25X185 CL10.9 ZY | 1 | $10.95 | |
| 3 | 3323-178 | NUT,HEX FL CLINCH LOCK M10-1.25 Z&Y | 1 | $2.61 | |
| 4 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 5 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 6 | 3313-364 | PIPE,EXHAUST-ASSY | 1 | $169.95 | |
| 7 | 3313-024 | PIPE,EXHAUST-BLACK | 1 | $118.95 | |
| 8 | 3313-025 | SHIELD,EXHAUST PIPE | 1 | $64.95 | |
| 9 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 10 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 11 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 12 | 3313-264 | GROMMET,MUFFLER | 1 | $12.35 | |
| 13 | 3313-050 | MUFFLER-BLACK | 1 | $573.95 | |
| 14 | 3323-116 | GASKET,SPARK ARRESTER | 1 | $6.20 | |
| 15 | 3305-344 | BOLT FLANGE 6*16 | 1 | $1.09 | |
| 16 | 3313-365 | SPARK ARRESTER-BLACK(service part) | 1 | $0.00 | |
| 17 | 3304-187 | BOLT FLANGE 6*10 | 1 | $0.81 | |
| 18 | 3313-026 | COVER,MUFFLER | 1 | $47.95 | |
| 19 | 3313-432 | SWITCH,TEMP-FAN | 1 | $82.95 | |
| 20 | 3313-431 | SWITCH,TEMP-LIGHT | 1 | $82.95 | |
| 21 | 0830-180 | O-RING,TEMP SWITCH (13.5X1.5) | 1 | $4.13 |
