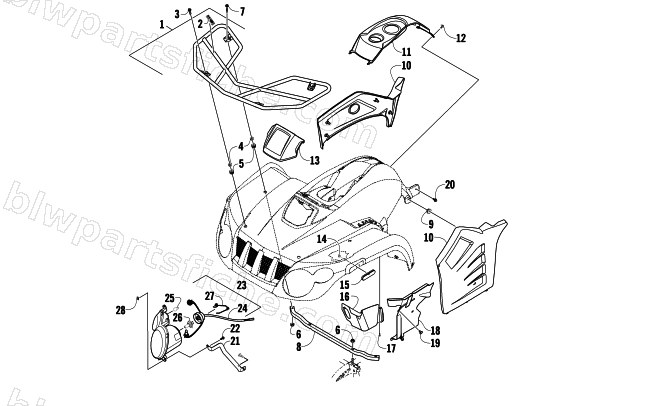

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — FRONT RACK AND HEADLIGHT ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-372 | RACK,FRONT-ASSEMBLY | 1 | $227.95 | |
| 2 | 1411-681 | DECAL,WARNING RACK (75LB) | 1 | $19.25 | |
| 3 | 3323-219 | SCREW,CAP-HFH M8X1.25X30 CL 8.8 RIE BLK | 1 | $1.78 | |
| 4 | 3323-014 | SPACER,STEEL | 1 | $4.95 | |
| 5 | 3323-013 | GROMMET, FENDER | 1 | $1.95 | |
| 6 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 7 | 3323-199 | SCREW,CAP-HFH M8*1.25*50 Z&Y | 1 | $2.61 | |
| 8 | 3313-469 | TUBE,REAR MOUNT-FRONT RACK-PAINTED | 1 | $20.63 | |
| 9 | 3323-015 | GROMMET,PANEL-SIDE | 1 | $2.95 | |
| 10 | 3313-752 | PANEL,SIDE-RH | 1 | $66.95 | |
| 10 | 3313-193 | R/B 3313-753 | 1 | $48.95 | |
| 11 | 3313-190 | COVER,TANK-FUEL(MARSH) | 1 | $13.73 | |
| 11 | 3313-188 | COVER,TANK-FUEL(RED) | 1 | $13.73 | |
| 11 | 3313-189 | COVER,TANK-FUEL(LIME) | 1 | $13.73 | |
| 12 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 13 | 3313-268 | COVER,ELECTRICAL (MARSH) | 1 | $13.73 | |
| 13 | 3313-266 | COVER,ELECTRICAL (RED) | 1 | $13.73 | |
| 13 | 3313-267 | COVER,ELECTRICAL (LIME) | 1 | $8.79 | |
| 14 | 3305-527 | NUT FLANGE 6MM | 1 | $0.81 | |
| 15 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 16 | 3313-466 | SHIELD,LINKAGE | 1 | $13.73 | |
| 17 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 18 | 3313-444 | PANEL,SPLASH-RH | 1 | $22.95 | |
| 18 | 3313-445 | PANEL,SPLASH-LH | 1 | $23.39 | |
| 19 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 20 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 21 | 3313-492 | BRACKET,SUPPORT-HEADLIGHT-RH-PAINTED | 1 | $16.49 | |
| 21 | 3313-493 | BRACKET,SUPPORT-HEADLIGHT-LH-PAINTED | 1 | $16.49 | |
| 22 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 23 | 3313-516 | HEADLIGHT-RH-ASSY(SAE) | 1 | $227.95 | |
| 23 | 3313-517 | HEADLIGHT-LH-ASSY(SAE) | 1 | $220.95 | |
| 24 | 3313-173 | ASSY, SOCKET-HEADLIGHT (SAE) | 1 | $47.95 | |
| 25 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 26 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 27 | 3313-249 | ASSY, CLIP-RETAIN H. LIGHT (RH-SAE) | 1 | $163.95 | |
| 27 | 3313-495 | UNIT HEAD LIGHT L | 1 | $148.95 | |
| 28 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 |
