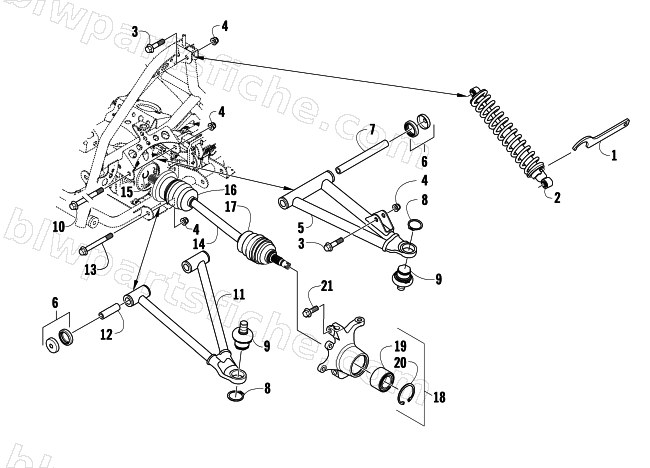

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — FRONT SUSPENSION ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 | |
| 2 | 3313-331 | SHOCK/SPRING-BLACK ASSY | 1 | $288.95 | |
| 2 | 3313-330 | SHOCK/SPRING-PLAT ASSY | 1 | $252.95 | |
| 3 | 3303-376 | SCREW,CAP-HFH M10X1.25X40 | 1 | $2.06 | |
| 4 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 5 | 3313-086 | A-ARM,FRONT UPPER-RH-ASSY (BLACK) | 1 | $220.95 | |
| 5 | 3313-087 | A-ARM,FRONT UPPER-LH-ASSY (BLACK) | 1 | $220.95 | |
| 5 | 3313-084 | ARM,FRONT UPPER-RH-ASSY (PL) | 1 | $220.95 | |
| 5 | 3313-085 | A-ARM,FRONT UPPER-LH-ASSY (PL) | 1 | $220.95 | |
| 6 | 3313-113 | SEAL,SUSPENSION | 1 | $3.44 | |
| 7 | 3313-111 | SLEEVE,SUSPENSION | 1 | $16.49 | |
| 8 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 9 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 10 | 3313-430 | SCREW,CAP-HFH M10 X 1.25 | 1 | $16.49 | |
| 11 | 3313-082 | A-ARM,FRONT LWR-RH-ASSY (BLACK) | 1 | $227.95 | |
| 11 | 3313-083 | A-ARM,FRONT LWR-LH-ASSY (BLACK) | 1 | $227.95 | |
| 11 | 3313-080 | A-ARM,FRONT LWR-RH-ASSY (PL) | 1 | $187.95 | |
| 11 | 3313-081 | A-ARM,FRONT LWR-LH-ASSY (PL) | 1 | $227.95 | |
| 12 | 3313-107 | SLEEVE,SUSPENSION | 1 | $12.35 | |
| 13 | 3304-183 | SCREW,CAP-HFH M10X1.25X85 | 1 | $2.59 | |
| 14 | 3313-447 | HALFSHAFT | 1 | $559.95 | |
| 15 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 16 | 3313-560 | DIFF SIDE BOOT SERVICE KIT(IN BOARD) | 1 | $94.95 | |
| 17 | 3313-558 | WHEEL SIDE BOOT SERVICE KIT-OUT BOARD | 1 | $69.29 | |
| 18 | 3323-130 | KNUCKLE,STEERING-RH ASSY | 1 | $248.95 | |
| 18 | 3323-131 | KNUCKLE,STEERING-LH ASSY | 1 | $248.95 | |
| 19 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 20 | 3323-143 | RING,RETAINING | 1 | $3.57 | |
| 21 | 3323-127 | SCREW-SHOULDER TSPH M6-1.0X18MM | 1 | $4.13 |
