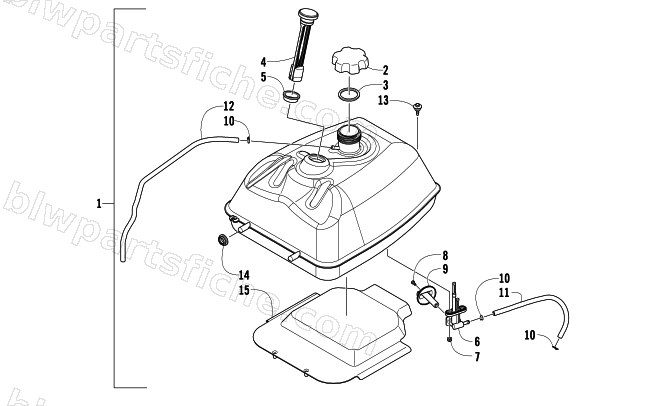

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — GAS TANK ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-284 | TANK,FUEL | 1 | $405.95 | |
| 2 | 3323-094 | CAP,FUEL | 1 | $12.35 | |
| 4 | 1436-445 | KIT-FUEL GAUGE | 1 | $54.95 | |
| 6 | 3313-325 | R/B 3307-149 | 1 | $62.95 | |
| 7 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 8 | 3323-091 | R/B 3307-151 | 1 | $0.65 | |
| 9 | 3313-287 | KNOB,FUEL TANK | 1 | $3.16 | |
| 10 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 11 | 3313-288 | HOSE,FUEL | 1 | $10.97 | |
| 12 | 3313-322 | HOSE,FUEL | 1 | $4.40 | |
| 13 | 3323-087 | SCREW, FUEL TANK | 1 | $4.13 | |
| 14 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 15 | 3313-286 | SHIELD, FUEL TANK | 1 | $18.95 |
