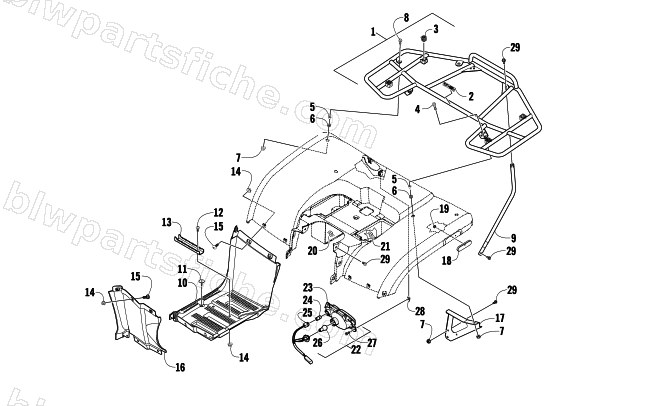

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — REAR RACK, FOOTWELL, AND TAILLIGHT ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-373 | RACK,REAR-ASSEMBLY | 1 | $324.95 | |
| 2 | 1411-682 | DECAL,WARNING RACK (150LB) | 1 | $17.87 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 3303-616 | BOLT FLANGE 8*35 | 1 | $1.78 | |
| 5 | 3323-014 | SPACER,STEEL | 1 | $4.95 | |
| 6 | 3323-013 | GROMMET, FENDER | 1 | $1.95 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 9 | 3313-449 | TUBE,MOUNT-RACK-REAR-PAINTED | 1 | $30.95 | |
| 10 | 3313-194 | FOOTWELL,REAR-RH | 1 | $76.95 | |
| 10 | 3313-195 | R/B 3313-763 | 1 | $76.95 | |
| 11 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 12 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 13 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 14 | 3305-275 | NUT U 6MM(HC) | 1 | $1.95 | |
| 15 | 3305-342 | BOLT FLANGE 6*20 | 1 | $0.81 | |
| 16 | 3313-462 | R/B 3313-760 | 1 | $51.95 | |
| 16 | 3313-463 | FOOTWELL,LH-FRONT | 1 | $47.95 | |
| 17 | 3313-352 | BRACKET,RACK MOUNT-PAINTED BLACK(RH) | 1 | $13.73 | |
| 17 | 3313-353 | BRACKET,RACK MOUNT-PAINTED BLACK(LH) | 1 | $13.73 | |
| 18 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 19 | 3305-527 | NUT FLANGE 6MM | 1 | $0.81 | |
| 20 | 3313-362 | SHIELD,RH | 1 | $10.97 | |
| 21 | 3313-363 | SHIELD,LH | 1 | $10.97 | |
| 22 | 3313-382 | ASSY,TAILLIGHT - RH (SAE) | 1 | $102.95 | |
| 22 | 3313-383 | ASSY,TAILLIGHT - LH (SAE) | 1 | $102.95 | |
| 24 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 25 | 3313-499 | ASSY, SOCKET-TAILLIGHT (SAE) | 1 | $47.95 | |
| 26 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 27 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 28 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 29 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 |
