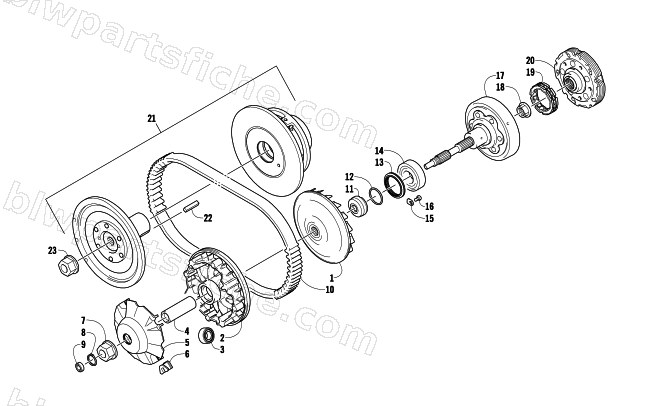

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — TRANSMISSION ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0823-203 | FACE,FIXED DRIVE | 1 | $118.95 | |
| 2 | 0823-207 | FACE,MOVABLE DRIVE | 1 | $118.95 | |
| 3 | 0823-210 | ROLLER,MOVABLE DRIVEN FACE | 1 | $8.21 | |
| 4 | 0823-206 | SPACER,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 5 | 0823-213 | PLATE,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 6 | 0823-214 | DAMPER,MOVABLE DRIVE FACE | 1 | $20.63 | |
| 7 | 3323-165 | NUT FLANGE 16mm Z&Y | 1 | $12.35 | |
| 8 | 3303-347 | CIR CLIP IN 32 | 1 | $2.61 | |
| 9 | 0832-023 | BEARING,CONRAD-6201 | 1 | $20.63 | |
| 10 | 0823-228 | V-BELT | 1 | $260.95 | |
| 11 | 0823-058 | SPACER, FIXED DRIVE FACE | 1 | $33.95 | |
| 12 | 0830-187 | O-RING 40 X 2.5 | 1 | $2.61 | |
| 13 | 0830-157 | SEAL,CLUTCH HOUSING (RIGHT) | 1 | $82.95 | |
| 14 | 0832-071 | BEARING,BALL,S/R,40X80X18 | 1 | $112.95 | |
| 15 | 0822-104 | RETAINER,BEARING | 1 | $2.61 | |
| 16 | 0826-144 | SCREW,PPH,M6X1X12 | 1 | $1.50 | |
| 17 | 0823-200 | HOUSING,CLUTCH | 1 | $509.95 | |
| 18 | 0827-050 | NUT,HFH CCW (M16 X 1.5) | 1 | $12.35 | |
| 19 | 0823-198 | CLUTCH,ONE WAY | 1 | $212.95 | |
| 20 | 0823-197 | SHOE,CLUTCH ASSEMBLY | 1 | $567.95 | |
| 21 | 0823-294 | CLUTCH,DRIVEN-ASM | 1 | $824.95 | |
| 23 | 0827-058 | NUT,FLANGE 16MM,DRIVE-SHAFT | 1 | $3.02 |
