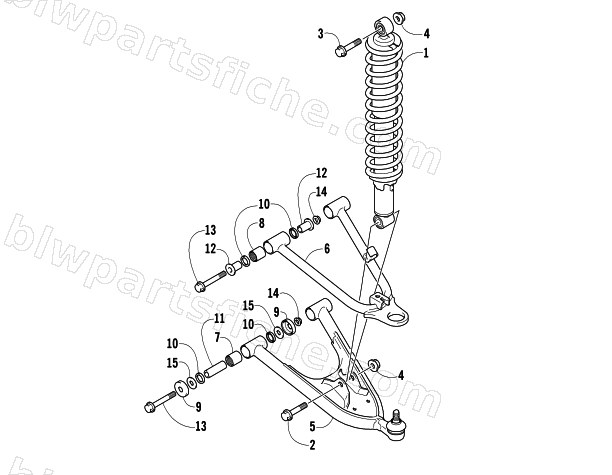

FRONT SUSPENSION ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3405-061 | ABSORBER ASSY,FR SHOCK(SILVER) | 1 | $1,546.95 | |
| 2 | 3423-641 | BOLT, LOWER (10X48) | 1 | $4.95 | |
| 3 | 3423-640 | BOLT, UPPER (10X38) | 1 | $4.95 | |
| 4 | 3423-863 | NUT | 1 | $4.54 | |
| 5 | 3405-052 | ARM,SUSPENSION LOWER,R | 1 | $398.95 | |
| 5 | 3405-053 | ARM,SUSPENSION LOWER,L | 1 | $398.95 | |
| 6 | 3405-054 | ARM COMP,SUSPENSION UPPER,R | 1 | $220.95 | |
| 6 | 3405-055 | ARM COMP,SUSPENSION UPPER,L | 1 | $220.95 | |
| 7 | 3406-093 | BEARING, SUSPENSION ARM PIVOT | 1 | $54.95 | |
| 8 | 3406-094 | BEARING, UPPER | 1 | $54.95 | |
| 9 | 3405-020 | SEAL,SUSPENSION ARM PIVOT DUST | 1 | $20.63 | |
| 10 | 3406-101 | SEAL, PIVOT INNER DUST | 1 | $8.21 | |
| 11 | 3406-112 | SPACER, LOWER | 1 | $37.95 | |
| 12 | 3406-111 | SPACER, UPPER | 1 | $47.95 | |
| 13 | 3423-634 | BOLT | 1 | $6.34 | |
| 15 | 3423-617 | WASHER | 1 | $3.02 |
