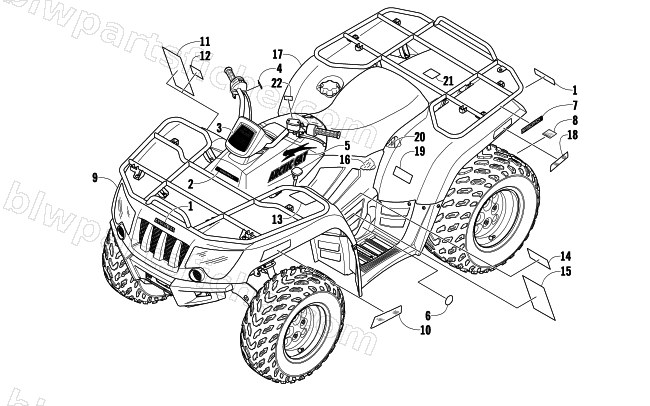

2008 Arctic Cat 400 MANUAL TRANSMISSION 4X4 FIS — BODY PANELS AND DECALS
2008 400 MANUAL TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 3 | 1411-614 | DECAL,POD-400 | 1 | $82.95 | |
| 4 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 5 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 5 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 6 | 0411-003 | DECAL,SHIFT PATTERN | 1 | $1.95 | |
| 7 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 8 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 9 | 4506-531 | FENDER,FRONT MARSH-ASSY | 1 | $642.95 | |
| 10 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 10 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 11 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 12 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 13 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 14 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 15 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 16 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 17 | 2506-763 | FENDER,ASSEMBLY-REAR(MARSH GREEN) | 1 | $630.95 | |
| 18 | 1411-598 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 18 | 1411-599 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 19 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 20 | 0412-351 | HEAT SHIELD,BATTERY BOX | 1 | $4.40 | |
| 21 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 22 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 |
