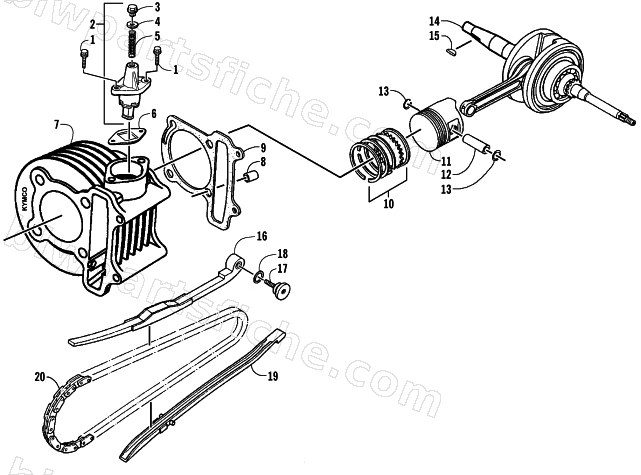

2008 Arctic Cat 50 UTILITY — CRANKSHAFT, CYLINDER, PISTON, AND CAM CHAIN ASSEMBLIES
2008 50 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-617 | R/B 3307-049 | 1 | $0.65 | |
| 2 | 3303-499 | ADJUSTER CAM CHAIN | 1 | $54.95 | |
| 3 | 3305-500 | PLUG ADJUSTER | 1 | $25.95 | |
| 4 | 3303-587 | WASHER SEALING 8*16*1.6 | 1 | $2.33 | |
| 5 | 3303-500 | SPG CAM CHAIN ADJUSTER | 1 | $8.95 | |
| 6 | 3305-477 | GASKET,CAM CHAIN ADJUSTER | 1 | $3.02 | |
| 7 | 3303-483 | CYLINDER COMP | 1 | $272.95 | |
| 8 | 3303-594 | PIN DOWEL SPECIAL 8*14 | 1 | $1.78 | |
| 9 | 3305-474 | GASKET,CYLINDER | 1 | $3.71 | |
| 10 | 3305-475 | RING ASSY PISTON | 1 | $79.95 | |
| 11 | 3305-476 | PISTON | 1 | $58.95 | |
| 12 | 3304-578 | PIN PISTON | 1 | $20.63 | |
| 13 | 3303-027 | CLIP PISTON PIN **0000 C.97.09.18. | 1 | $1.92 | |
| 14 | 3303-490 | CRANK SHAFT COMP | 1 | $398.95 | |
| 15 | 3303-290 | KEY WOODRUFF **0000-M1 C.99.07.07. | 1 | $2.61 | |
| 16 | 3303-498 | TENSIONER CAM CHAIN | 1 | $47.95 | |
| 17 | 3303-036 | PIVOT CAM CHAIN TENSIONER | 1 | $2.95 | |
| 18 | 3303-301 | O-RING 15.2*1.5 **0030 C.97.07.26. | 1 | $1.37 | |
| 19 | 3303-503 | GUIDE COMP CAM CHAIN | 1 | $30.95 | |
| 20 | 3303-494 | CHAIN CAM | 1 | $87.95 |
