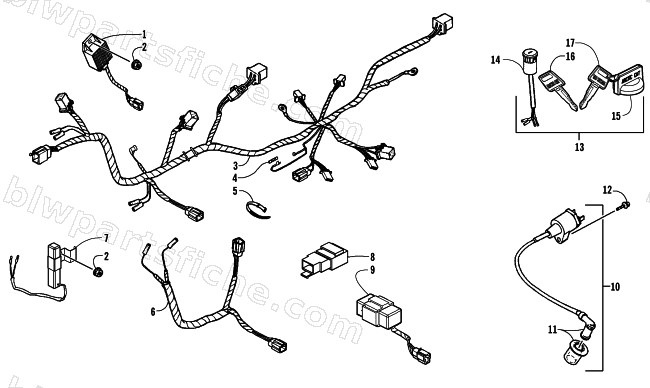

ELECTRICAL AND WIRING HARNESS ASSEMBLY
2008 50 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-132 | REG REC COMP | 1 | $58.95 | |
| 2 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 3 | 3305-492 | HARNESS WIRE | 1 | $235.95 | |
| 3 | 3305-455 | HARNESS WIRE | 1 | $235.95 | |
| 4 | 3303-399 | FUSE A7 | 1 | $4.95 | |
| 5 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 6 | 3303-134 | SUB CORD | 1 | $6.47 | |
| 7 | 3303-142 | RESISTOR COMP | 1 | $33.95 | |
| 8 | 3303-565 | RELAY ASSY START | 1 | $47.95 | |
| 8 | 3303-143 | RELAY COMP START **(2) C.2001.10.09 | 1 | $45.95 | |
| 9 | 3305-493 | UNIT ASSY CDI | 1 | $324.95 | |
| 9 | 3303-413 | CDI ASSY & SPEED CONTROL | 1 | $235.95 | |
| 10 | 3303-125 | COIL ASSY IGN | 1 | $42.95 | |
| 11 | 3303-126 | CAP ASSY NOISE SUPPRESOR **(0) C.00.09. | 1 | $16.49 | |
| 12 | 3303-252 | BOLT FLANGE 5*22 **GK8 C.98.03.19. | 1 | $0.81 | |
| 13 | 3303-423 | KEY SET | 1 | $37.95 | |
| 15 | 3304-522 | KEY COVER-ARCTIC CAT | 1 | $4.13 | |
| 16 | 3307-104 | KEY COMP / TJ / R CUT | 1 | $6.89 | |
| 17 | 3304-521 | R/B 3307-105 | 1 | $13.95 |
