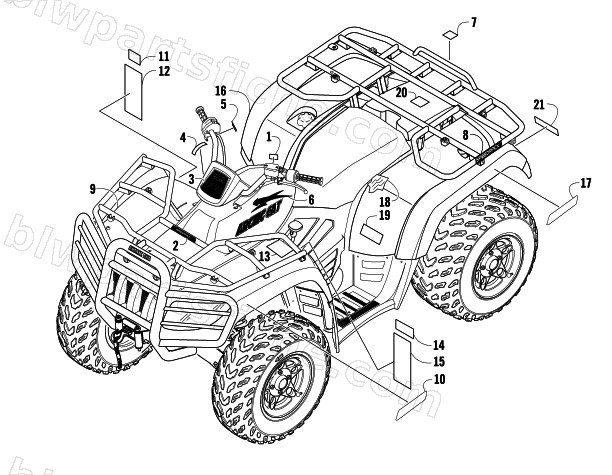

2008 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 FIS LE — BODY PANELS AND DECALS (LE)
2008 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 3 | 1411-558 | DECAL,POD-500 | 1 | $24.77 | |
| 4 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 6 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 7 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 8 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 9 | 2516-056 | FENDER,FRONT - ASSEMBLY (BURNT ORANGE) | 1 | $1,079.95 | |
| 10 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 10 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 11 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 12 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 13 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 14 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 15 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 16 | 2506-968 | FENDER,ASSEMBLY-REAR (BURNT ORANGE) | 1 | $832.95 | |
| 17 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 17 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 18 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 19 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 20 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 21 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 |
