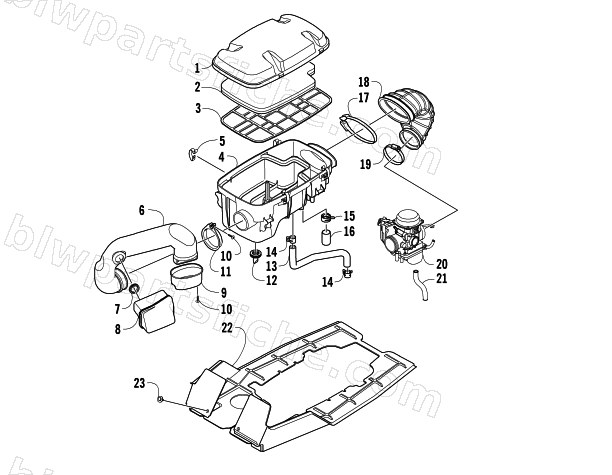

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS — AIR INTAKE ASSEMBLY
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 2 | 0470-558 | FILTER,AIR | 1 | $42.95 | |
| 3 | 0470-560 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 4 | 0470-675 | AIR BOX,BOTTOM | 1 | $85.95 | |
| 5 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 6 | 0470-749 | DUCT,ENGINE AIR INTAKE | 1 | $58.95 | |
| 7 | 0423-763 | GROMMET,AIR INTAKE | 1 | $3.57 | |
| 8 | 0570-215 | RESONATOR,WELDMENT (327 HZ) | 1 | $32.95 | |
| 9 | 0470-729 | CUP,AIR INTAKE | 1 | $12.35 | |
| 10 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 11 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 12 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 13 | 0410-172 | HOSE,VENT-CRANKCASE | 1 | $26.95 | |
| 14 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 15 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 16 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 17 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 18 | 0470-525 | BOOT, AIR CLEANER | 1 | $79.95 | |
| 19 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 20 | 0470-741 | CARB,CVK 36-AE (W/PUMPER)(650 H1) | 1 | $486.95 | |
| 21 | 0510-592 | HOSE,CARB DRAIN | 1 | $6.75 | |
| 22 | 2406-604 | PANEL,AIR BOX SHIELD | 1 | $82.95 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
