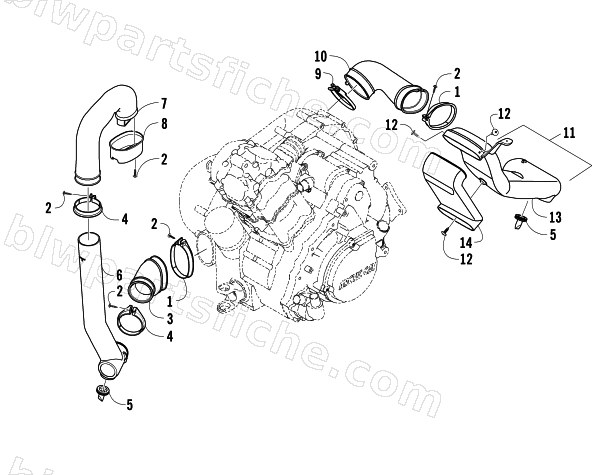

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS — CASE/BELT COOLING ASSEMBLY
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 2 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 3 | 0413-198 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 4 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 5 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 6 | 0513-010 | DUCT,AIR IN-ROUTED | 1 | $47.95 | |
| 7 | 0470-750 | DUCT,CLUTCH AIR INTAKE | 1 | $64.95 | |
| 8 | 0470-729 | CUP,AIR INTAKE | 1 | $12.35 | |
| 9 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 10 | 0413-206 | BOOT,COOLING BELT | 1 | $30.95 | |
| 11 | 0470-824 | DUCT,BELT COOLING-AIR OUT | 1 | $54.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 0470-825 | DUCT,AIR OUT-PRIMARY | 1 | $50.95 | |
| 14 | 0470-778 | DUCT,AIR OUT-SECONDARY | 1 | $50.95 |
