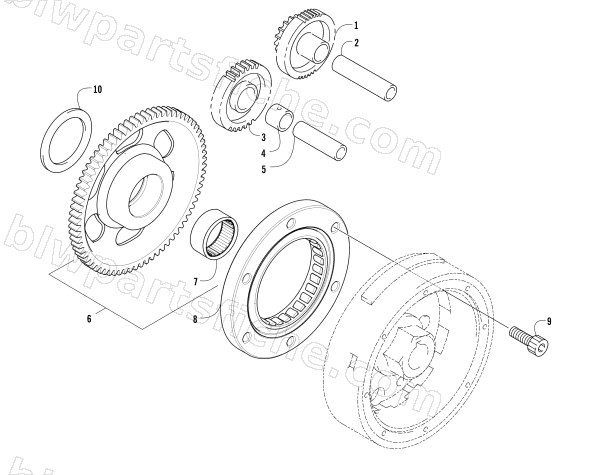

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS — STARTER CLUTCH ASSEMBLY
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0815-033 | GEAR,STARTER-IDLER (44T/14T SC) | 1 | $100.95 | |
| 2 | 0829-031 | SHAFT,STARTER GEAR,12X58.5 | 1 | $10.97 | |
| 3 | 0815-002 | GEAR,STARTER IDLER-27T- NO. 2 | 1 | $82.95 | |
| 4 | 0815-003 | SPACER, STARTER IDLER GEAR NO. 2 | 1 | $4.82 | |
| 5 | 0829-032 | SHAFT,STARTER GEAR,12X44.7 | 1 | $20.63 | |
| 6 | 0815-004 | GEAR,STARTER CLUTCH-73T-ASSY | 1 | $231.95 | |
| 7 | 0832-079 | BEARING,NEEDLE ROLLER-31X39X18 | 1 | $30.95 | |
| 8 | 0802-035 | CLUTCH, ONE WAY W/ HUB - ASSEMBLY | 1 | $252.95 | |
| 9 | 0826-069 | SCREW, TORX SOCKET HEAD, M8 x 1.25 x 20 | 1 | $1.50 | |
| 10 | 0828-094 | WASHER,STEEL 30 X 50 X 2.5 | 1 | $6.75 |
