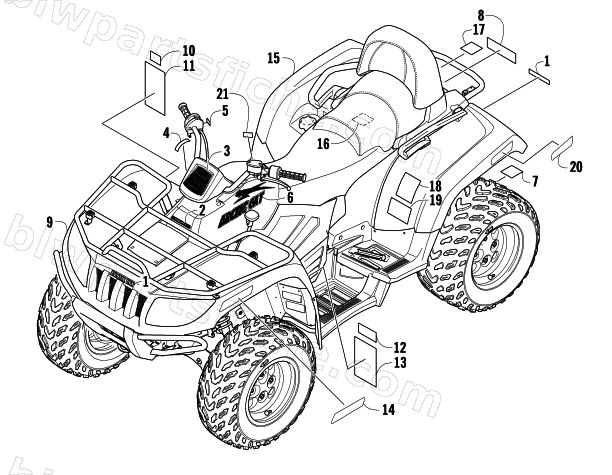

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV — BODY PANELS AND DECALS
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 3 | 1411-552 | DECAL,POD-650 H1 TRV | 1 | $26.95 | |
| 4 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 6 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 7 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 8 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 9 | 0518-009 | FENDER,ASSEMBLY-FRONT (BLACK) | 1 | $539.95 | |
| 9 | 0518-068 | FENDER,FRONT RED-ASSY | 1 | $539.95 | |
| 9 | 0518-069 | FENDER,FRONT LIME-ASSY | 1 | $360.95 | |
| 10 | 0411-894 | DECAL,WARNING HILL (TRV) | 1 | $4.95 | |
| 11 | 0411-666 | DECAL,WARNING-PRE RIDE (AE) | 1 | $23.39 | |
| 12 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 13 | 0411-753 | DECAL, WARNING-TRV GENERAL/AGE | 1 | $17.87 | |
| 14 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 14 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 15 | 4506-310 | FENDER,REAR BLACK-ASSY(TRV) | 1 | $407.95 | |
| 15 | 4506-307 | FENDER,REAR RED-ASSY(TRV) | 1 | $407.95 | |
| 15 | 4506-308 | FENDER,REAR LIME-ASSY(TRV) | 1 | $413.95 | |
| 16 | 1411-269 | DECAL,WARNING PASSENGER TRV | 1 | $24.77 | |
| 17 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 18 | 0411-833 | DECAL,WARNING-TRV PASSENGER | 1 | $12.35 | |
| 19 | 0411-832 | DECAL,WARNING-TIRE PRESSURE | 1 | $10.97 | |
| 20 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 20 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 21 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 |
