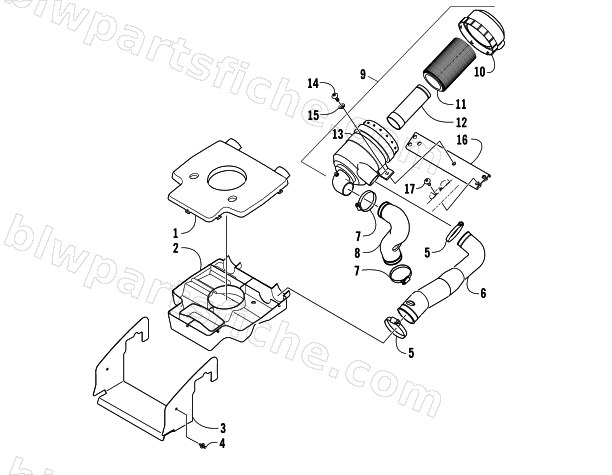

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — AIR INTAKE ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 2 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 3 | 2406-509 | SHROUD,SPLASH | 1 | $37.95 | |
| 4 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 5 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 6 | 0470-618 | DUCT,AIR INTAKE-COUPLER | 1 | $33.95 | |
| 7 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 8 | 0470-621 | DUCT,ENGINE INTAKE-COUPLER | 1 | $49.95 | |
| 9 | 0470-991 | FILTER,AIR-EUROPICLON-ASSY | 1 | $126.95 | |
| 10 | 0470-627 | AIR FILTER,EUROPICLON-CAP | 1 | $47.95 | |
| 11 | 0470-619 | FILTER,AIR-CARTRIDGE-MAIN | 1 | $54.95 | |
| 12 | 0470-620 | AIR FILTER,CARTRIDGE-SAFETY | 1 | $27.95 | |
| 13 | 0470-628 | AIR FILTER,EUROPICLON-MOUNT | 1 | $37.95 | |
| 14 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 15 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 16 | 2506-082 | BRACKET,AIR FILTER HOLDER-PAINTED | 1 | $37.95 | |
| 17 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 |
