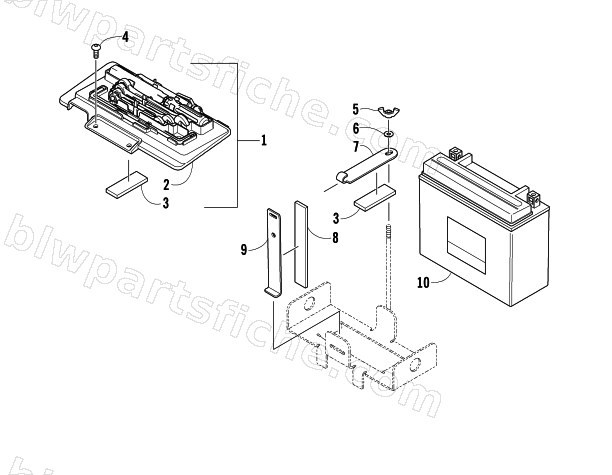

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — BATTERY ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 1 | 5993-040 | TRAY,TOOL-ASSY | 1 | $100.95 | |
| 2 | 4406-136 | COVER,BATTERY/TOOL TRAY | 1 | $69.95 | |
| 3 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 4 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 5 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0645-243 | STRAP, BATTERY HOLDOWN-TOP | 1 | $16.49 | |
| 8 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 9 | 0645-311 | STRAP,BATTERY HOLDOWN-SIDE | 1 | $32.95 | |
| 10 | 0745-230 | BATTERY,E START-TURBO W/FOIL(0645-432) | 1 | $259.95 |
