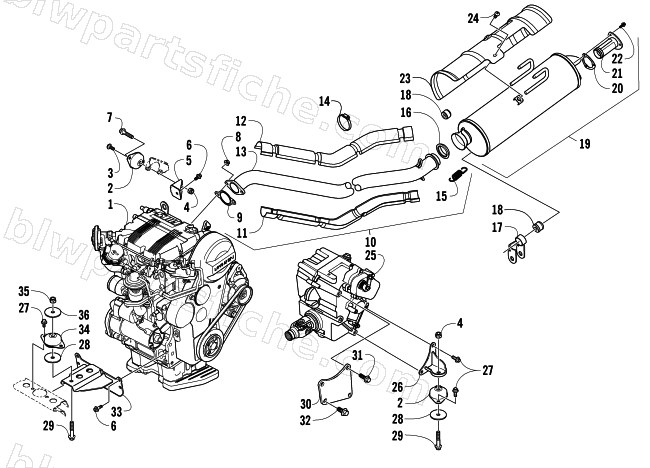

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — ENGINE AND EXHAUST
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0463-044 | ENGINE,PKG-DIESEL-KD(686) | 1 | $4,932.95 | |
| 2 | 2406-323 | MOUNT,RUBBER-ENGINE | 1 | $69.95 | |
| 3 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 4 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 2506-186 | BRACKET,HEAD STAY-BLACK | 1 | $30.95 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0423-736 | SCREW,MACH-HSBH M10X1.5X45 ALLOY SIL RIE | 1 | $3.57 | |
| 8 | 3206-293 | NUT M 8 | 1 | $4.26 | |
| 9 | 3206-296 | EXHAUST PIPE GASKET | 1 | $13.73 | |
| 10 | 0512-322 | PIPE,EXHAUST-ASSEMBLY | 1 | $292.95 | |
| 11 | 0412-386 | SHIELD,EXHAUST PIPE | 1 | $58.95 | |
| 12 | 0412-385 | SHIELD,EXHAUST PIPE | 1 | $58.95 | |
| 13 | 0512-321 | PIPE,EXHAUST-BLACK | 1 | $187.95 | |
| 14 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 15 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 16 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 17 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 18 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 19 | 0512-306 | MUFFLER,PAINTED | 1 | $494.95 | |
| 20 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 21 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 22 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 24 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 25 | 1502-853 | TRANSMISSION ASSEMBLY (DIESEL) | 1 | $3,799.95 | |
| 26 | 2506-190 | MOTOR MOUNT,RH-BLACK | 1 | $30.95 | |
| 26 | 2506-191 | MOTOR MOUNT,LH-BLACK | 1 | $30.95 | |
| 27 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 28 | 2506-061 | WASHER,ENGINE MOUNT-Z&Y | 1 | $5.51 | |
| 29 | 8408-055 | SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y | 1 | $3.16 | |
| 30 | 0408-015 | PLATE,ENGINE/TRANSMISSION MOUNT | 1 | $30.95 | |
| 31 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 32 | 0423-685 | SCREW,CAP-HFH M12-1.75X25 CL8.8 BLK | 1 | $4.95 | |
| 33 | 2506-189 | MOUNT,MOTOR-FRONT-BLACK | 1 | $54.95 | |
| 34 | 2406-322 | MOUNT,RUBBER-ENGINE | 1 | $66.95 | |
| 35 | 0423-737 | NUT,HEX-NSL M10X1.5 CL10 Z&C | 1 | $0.95 | |
| 36 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 |
