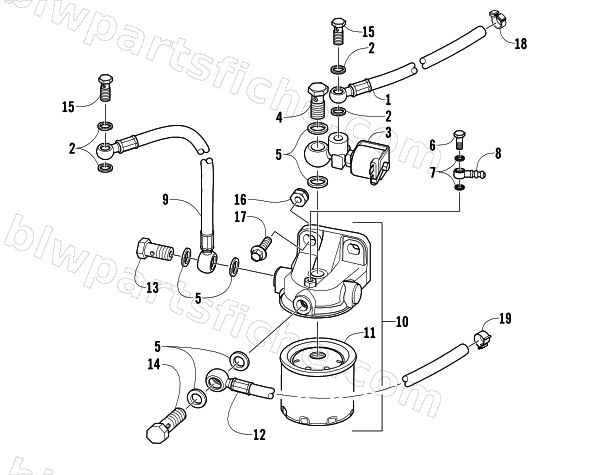

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — FUEL FILTER, ELECTRO-VALVE, AND HOSES ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-014 | HOSE,FUEL | 1 | $64.95 | |
| 2 | 3206-010 | SEAL,HOSE SCREW | 1 | $5.09 | |
| 3 | 3206-002 | VALVE,ELECTRIC | 1 | $432.95 | |
| 4 | 3206-003 | SCREW,HOSE | 1 | $50.95 | |
| 5 | 3206-004 | SEAL,HOSE SCREW | 1 | $4.40 | |
| 6 | 3206-006 | SCREW,HOSE | 1 | $17.87 | |
| 7 | 3206-007 | SEAL,HOSE SCREW | 1 | $1.50 | |
| 8 | 3206-008 | FITTING,HOSE | 1 | $16.49 | |
| 9 | 3206-015 | HOSE,FUEL | 1 | $27.95 | |
| 10 | 3206-001 | BODY,FUEL FILTER | 1 | $429.95 | |
| 11 | 3206-012 | FILTER, FUEL | 1 | $82.95 | |
| 12 | 3206-013 | HOSE, FUEL | 1 | $42.95 | |
| 13 | 3206-011 | SCREW,HOSE | 1 | $33.95 | |
| 14 | 3206-005 | SCREW,HOSE-W/VALVE | 1 | $203.95 | |
| 15 | 3206-009 | SCREW,HOSE | 1 | $19.25 | |
| 16 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 17 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 18 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 19 | 0423-670 | CLAMP,SNAP-9 MM | 1 | $3.44 |
