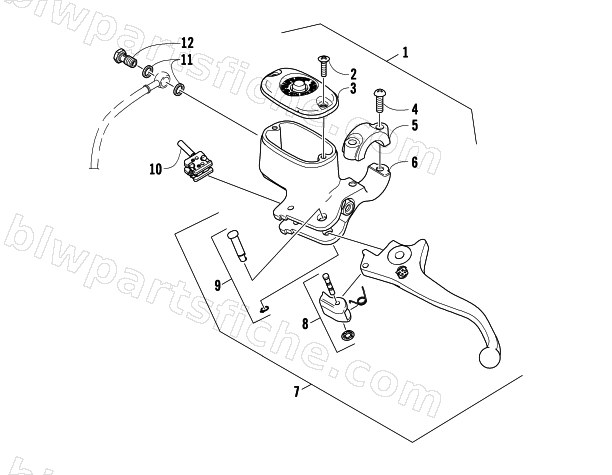

HYDRAULIC HAND BRAKE ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-902 | CYLINDER,MASTER BRAKE-BLK-ASSY | 1 | $324.95 | |
| 2 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 3 | 0502-868 | RESERVOIR COVER SUB-ASSEMBLY KIT | 1 | $86.95 | |
| 4 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 5 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 6 | 0502-704 | KIT,REBUILD MASTER CYLINDER (HAYES BLK) | 1 | $192.95 | |
| 7 | 1502-904 | KIT,LEVER AND PARK LEVER SUB-ASSY | 1 | $118.95 | |
| 8 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 9 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 10 | 0502-564 | KIT, BRAKE LIGHT SWITCH | 1 | $58.95 | |
| 11 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 12 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 |
