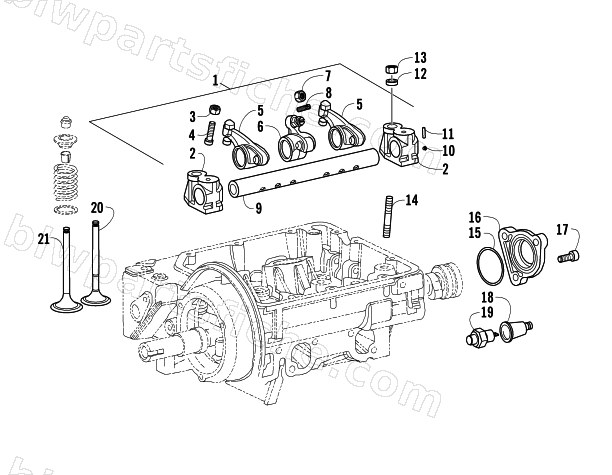

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — ROCKER ARM, VALVES, AND OIL SWITCH ASSEMBLIES
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-135 | ROCKER ARM ASSY | 1 | $1,501.95 | |
| 2 | 3206-141 | ROCK.ARM SHAFT SUPPORT | 1 | $126.95 | |
| 3 | 3206-137 | NUT M 6 | 1 | $1.50 | |
| 4 | 3206-136 | ADJ.SCREW | 1 | $90.95 | |
| 5 | 3206-134 | ROCKER ARM (INLET/EXHAUST) | 1 | $187.95 | |
| 6 | 3206-140 | INJ. PUMP ROCKER ARM | 1 | $260.95 | |
| 7 | 3206-139 | NUT | 1 | $1.50 | |
| 8 | 3206-138 | ADJ.SCREW | 1 | $69.95 | |
| 9 | 3206-144 | ROCKER ARM SHAFT | 1 | $509.95 | |
| 10 | 3206-146 | PLUG DIAM.10 | 1 | $20.63 | |
| 11 | 3206-145 | LOCKPIN 4 X 14 | 1 | $1.50 | |
| 12 | 3206-064 | WASHER DIAM. 10,2 | 1 | $12.35 | |
| 13 | 3206-142 | NUT M 10 | 1 | $2.61 | |
| 14 | 3206-143 | STUD M 10 X 45 | 1 | $12.35 | |
| 15 | 3206-313 | O-RING 40,95 X 2,62 | 1 | $6.89 | |
| 16 | 3206-314 | FLANGE | 1 | $26.95 | |
| 17 | 3206-082 | SCREW M 6 X 20 | 1 | $5.51 | |
| 18 | 3206-305 | PIPE ELBOW | 1 | $12.35 | |
| 19 | 3206-304 | OIL SWITCH 1,4 BAR (WHITE MARK) | 1 | $187.95 | |
| 20 | 3206-150 | EXHAUST VALVE | 1 | $114.95 | |
| 21 | 3206-151 | INTAKE VALVE | 1 | $100.95 |
