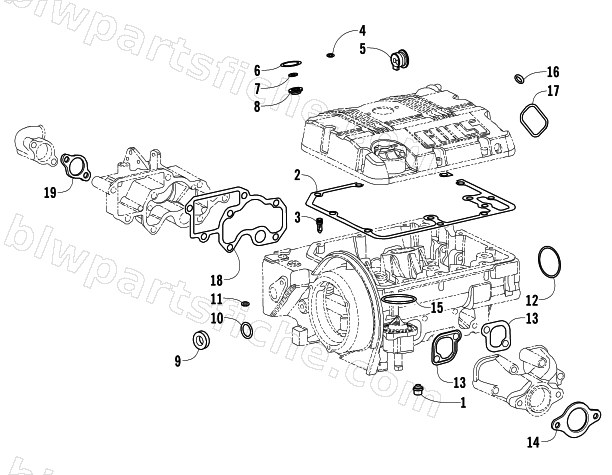

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — TOP END GASKET SET ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3206-328 | TOP END GASKET SET | 1 | $167.95 | |
| 1 | 3206-152 | VALVE RETAINER | 1 | $26.95 | |
| 2 | 3206-086 | GASKET | 1 | $79.95 | |
| 3 | 3206-084 | CONNECTION | 1 | $12.35 | |
| 4 | 3206-095 | SEAL RING 9,25X1,78 | 1 | $6.20 | |
| 5 | 3206-094 | DELIVERY PIPE SEAL | 1 | $19.25 | |
| 6 | 3206-122 | O RING 26,70X1,78 | 1 | $3.71 | |
| 7 | 3206-124 | COPPER GASKET DIAM.14 X 1 | 1 | $3.71 | |
| 8 | 3206-059 | SPARK ARRESTOR | 1 | $10.97 | |
| 9 | 3206-208 | SEAL RING 35X52X7 | 1 | $30.95 | |
| 10 | 3206-210 | RUBBER OIL SEAL | 1 | $16.49 | |
| 11 | 3206-226 | RUBBER OIL SEAL | 1 | $1.50 | |
| 12 | 3206-313 | O-RING 40,95 X 2,62 | 1 | $6.89 | |
| 13 | 3206-291 | EXH.MANIFOLD GASKET | 1 | $5.78 | |
| 14 | 3206-296 | EXHAUST PIPE GASKET | 1 | $13.73 | |
| 15 | 3206-260 | O RING | 1 | $12.35 | |
| 16 | 3206-010 | SEAL,HOSE SCREW | 1 | $5.09 | |
| 17 | 3206-256 | O RING 3150 | 1 | $3.57 | |
| 18 | 3206-277 | INL.MANIFOLD GASKET | 1 | $30.95 | |
| 19 | 3206-289 | GASKET | 1 | $10.97 |
