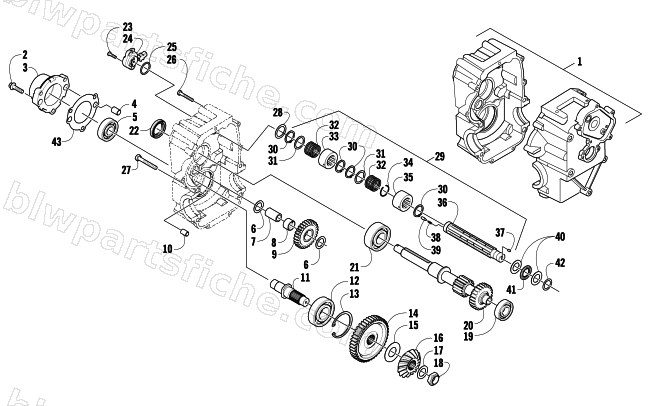

TRANSMISSION RIGHT-SIDE ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-364 | HOUSING,GEARBOX-SET | 1 | $1,106.95 | |
| 2 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 3 | 0801-168 | HOUSING,SECONDARY SHAFT BEARING | 1 | $215.95 | |
| 4 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 5 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 6 | 0828-016 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $5.51 | |
| 7 | 0822-015 | SHAFT, REVERSE IDLE | 1 | $30.95 | |
| 8 | 0822-012 | BUSHING, REVERSE IDLE GEAR | 1 | $30.95 | |
| 9 | 0822-011 | GEAR, REVERSE IDLE | 1 | $84.95 | |
| 10 | 0829-003 | DOWEL, SPLIT, 11 x 16 | 1 | $10.97 | |
| 11 | 0822-067 | SHAFT,OUTPUT (SOLID) | 1 | $129.95 | |
| 12 | 0832-077 | BEARING,6305-RADIAL (INA) | 1 | $79.95 | |
| 13 | 0402-347 | RING,RETAINING-INT 62 | 1 | $4.95 | |
| 14 | 1402-559 | GEAR,DRIVEN-NO.2 (42 TOOTH) | 1 | $314.95 | |
| 15 | 0828-030 | SHIM, 24 x 48 x .25 | 1 | $4.54 | |
| 15 | 0828-031 | SHIM, 24 x 48 x .30 | 1 | $4.54 | |
| 15 | 0828-032 | SHIM, 24 x 48 x .35 | 1 | $17.87 | |
| 15 | 0828-033 | SHIM, 24 x 48 x .90 | 1 | $5.92 | |
| 15 | 0828-018 | SHIM, 24 x 48 x .95 | 1 | $4.54 | |
| 15 | 0828-062 | SHIM, 24 x 48 x 1.00 | 1 | $17.87 | |
| 15 | 0828-063 | SHIM, 24 x 48 x 1.05 | 1 | $17.87 | |
| 15 | 0828-064 | SHIM, 24 x 48 x 1.10 | 1 | $17.87 | |
| 15 | 0828-065 | SHIM, 24 x 48 x 1.15 | 1 | $19.25 | |
| 16 | 0819-001 | GEAR, (USE 0822-146-H1, 0822-147-H2) | 1 | $130.95 | |
| 17 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 18 | 0827-012 | NUT,HEX COLLARED (M20 X1.5 ) | 1 | $20.63 | |
| 19 | 0832-049 | BEARING,CONRAD-6204 | 1 | $17.87 | |
| 20 | 1402-553 | SHAFT,INPUT | 1 | $891.95 | |
| 21 | 0832-048 | BEARING,DRIVESHAFT | 1 | $122.95 | |
| 22 | 0830-035 | SEAL, DRIVESHAFT | 1 | $16.49 | |
| 23 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 24 | 0409-090 | SWITCH,GEAR-ENGINE (08 H1) | 1 | $85.95 | |
| 25 | 0423-714 | O-RING,25.4 X 2.62 | 1 | $16.49 | |
| 26 | 8405-640 | SCREW,CAP-HH M6X1.0X40 CL10.9 Z&BL | 1 | $0.95 | |
| 27 | 8405-855 | SCREW,CAP-HH M8X1.25X55 CL10.9 Z&BL | 1 | $1.64 | |
| 28 | 0828-040 | WASHER, STEEL, 25 x 34 x .72 | 1 | $1.78 | |
| 29 | 0818-127 | SHIFT-SUB ASSY | 1 | $201.95 | |
| 30 | 0831-011 | RING, EXTERNAL RETAINING - DSH-25 | 1 | $3.44 | |
| 31 | 0828-039 | WASHER,STEEL 25 x 32 x .9 | 1 | $0.81 | |
| 32 | 0818-012 | SPRING, CAM, GEAR SHIFT | 1 | $3.44 | |
| 33 | 0818-027 | CAM,REVERSE, GEAR SHIFT | 1 | $82.95 | |
| 34 | 0818-011 | C-RING, CAM | 1 | $5.51 | |
| 35 | 0818-009 | CAM, FORWARD, GEAR SHIFT | 1 | $90.95 | |
| 36 | 0818-010 | SHAFT, GEAR SHIFT | 1 | $129.95 | |
| 37 | 0829-011 | PIN,SOLID DOWEL (4 X 8) | 1 | $1.64 | |
| 38 | 0818-017 | SPRING, SHIFT CONTACTS | 1 | $19.25 | |
| 39 | 0818-013 | CONTACT,GEAR SHIFT ASSY | 1 | $13.73 | |
| 40 | 0828-067 | WASHER,THRUST BEARING | 1 | $10.97 | |
| 41 | 0828-131 | SPACER,SHIFT SHAFT | 1 | $4.95 | |
| 42 | 0828-037 | WASHER, STEEL 20 x 28 x .5 | 1 | $3.02 | |
| 43 | 1402-605 | GASKET,BEARING CUP | 1 | $26.95 |
