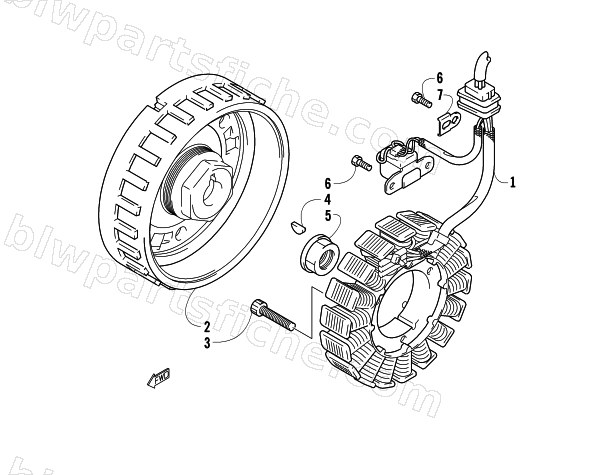

MAGNETO ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3430-067 |
STATOR ASSEMBLY |
1 |
$713.95 |
|
| 2 |
3430-068 |
ROTOR ASSEMBLY |
1 |
$870.95 |
|
| 3 |
3007-687 |
BOLT,MAG STATOR 6X30 |
1 |
$4.68 |
|
| 4 |
0691-785 |
KEY(FASTENER) |
1 |
$4.95 |
|
| 5 |
3423-086 |
NUT, MAGNETO ROTOR |
1 |
$13.73 |
|
| 6 |
3423-005 |
BOLT, 5X10 |
1 |
$2.61 |
|
| 7 |
3430-005 |
CLAMP, GENERATOR LEAD WIRE B |
1 |
$3.44 |
|
