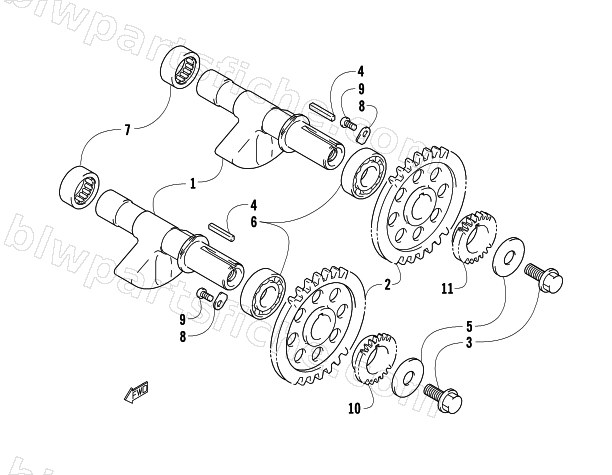

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER — CRANK BALANCER ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-093 | BALANCER,CRANK | 1 | $205.95 | |
| 2 | 3403-094 | GEAR,CRANK BALANCER DRIVEN | 1 | $205.95 | |
| 3 | 3423-555 | BOLT, DRIVE GEAR | 1 | $4.95 | |
| 4 | 3423-808 | KEY | 1 | $5.92 | |
| 5 | 3423-401 | WASHER, DRIVE GEAR | 1 | $4.95 | |
| 6 | 3403-095 | BEARING,20X42X12 | 1 | $66.95 | |
| 7 | 3403-096 | BEARING,20X28X16 | 1 | $66.95 | |
| 8 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 9 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 10 | 3403-097 | SPROCKET,OIL PUMP DRIVE | 1 | $90.95 | |
| 11 | 3403-098 | GEAR,WATER PUMP DRIVE | 1 | $100.95 |
