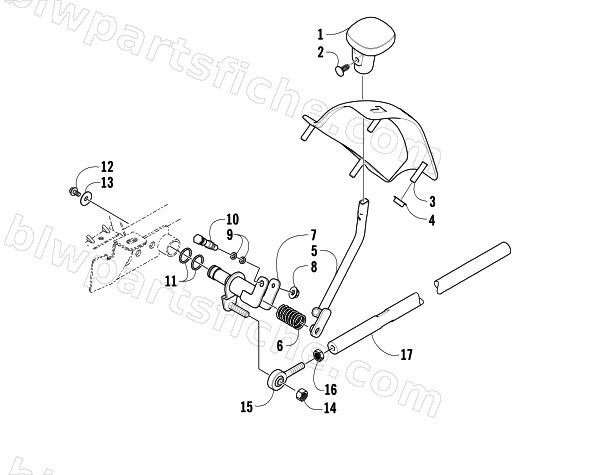

SHIFT LEVER ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-843 | KNOB,SHIFT | 1 | $16.49 | |
| 2 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 3 | 1402-576 | GATE,SHIFTER-AUTO | 1 | $20.63 | |
| 4 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 5 | 1502-977 | LEVER,SHIFT-PTD | 1 | $50.95 | |
| 6 | 0402-678 | SPRING,SHIFT,LEVER | 1 | $10.97 | |
| 7 | 0502-950 | SHAFT,SHIFTER-BLACK | 1 | $46.95 | |
| 8 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 9 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 10 | 0402-675 | AXLE,PIVOT,SHAFT | 1 | $20.63 | |
| 11 | 0423-299 | O-RING,-016 (5/8X3/4X1/16) | 1 | $1.23 | |
| 12 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 13 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 14 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 15 | 0423-648 | ROD END,M6X1.0 LH | 1 | $30.95 | |
| 16 | 0423-649 | NUT,JAM-M6X1.0 LH | 1 | $0.68 | |
| 17 | 2406-201 | LINK,SHIFTER | 1 | $32.95 |
