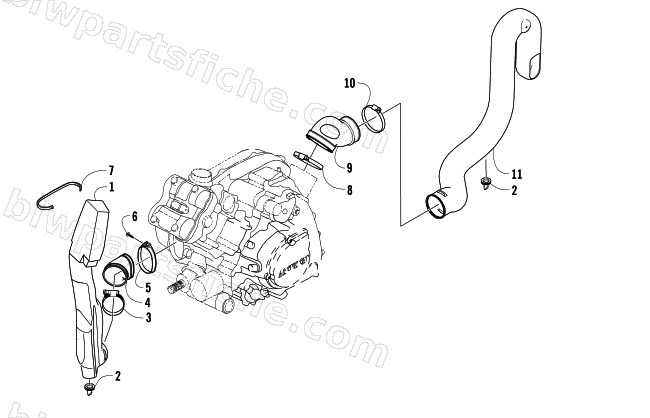

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV LE — CASE/BELT COOLING ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-126 | DUCT,COOLING-BELT IN | 1 | $58.95 | |
| 2 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 3 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 4 | 0413-160 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 5 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 8 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 9 | 0413-196 | BOOT,COOLING-BELT OUT | 1 | $17.95 | |
| 10 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 11 | 0413-106 | DUCT,BELT COOLING-REAR | 1 | $58.95 |
