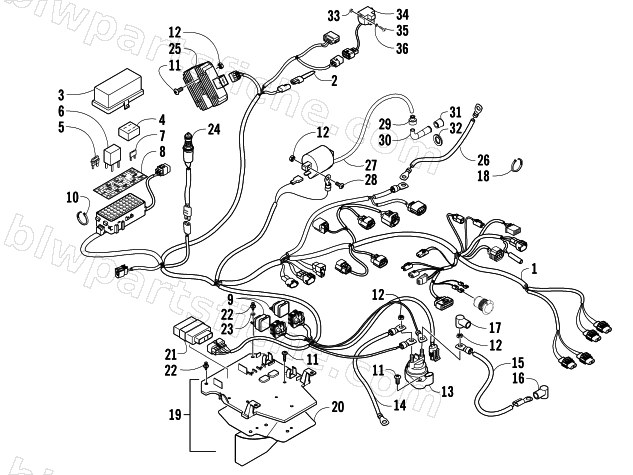

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV LE — WIRING HARNESS ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-262 | HARNESS/DIA,MAIN (08 700 SEFI TRV) | 1 | $891.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-673 | DECAL,PDM (08 700 SEFI) | 1 | $7.95 | |
| 9 | 0430-052 | RELAY,SPDT-30A WP | 1 | $30.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 14 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 15 | 0445-064 | CABLE,SOLENOID-STARTER (19" RED #6) | 1 | $30.95 | |
| 16 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 17 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 18 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 19 | 2506-759 | TRAY,ELECTRICAL W/HEAT SHIELD | 1 | $97.95 | |
| 20 | 2506-760 | SHIELD,HEAT-ASSEMBLY | 1 | $67.95 | |
| 21 | 3430-063 | ECU UNIT | 1 | $1,048.95 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 25 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 26 | 0445-065 | CABLE,BATTERY/CHASSIS (6AWG) | 1 | $16.95 | |
| 27 | 3530-053 | COIL ASSEMBLY,IGNITION | 1 | $164.95 | |
| 28 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 29 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 30 | 3530-054 | CAP ASSEMBLY,SPARK PLUG | 1 | $64.95 | |
| 31 | 3409-031 | COVER,SPARK PLUG CAP | 1 | $10.97 | |
| 32 | 3409-030 | SEAL,SPARK PLUG CAP | 1 | $16.49 | |
| 33 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 34 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 35 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 36 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 |
