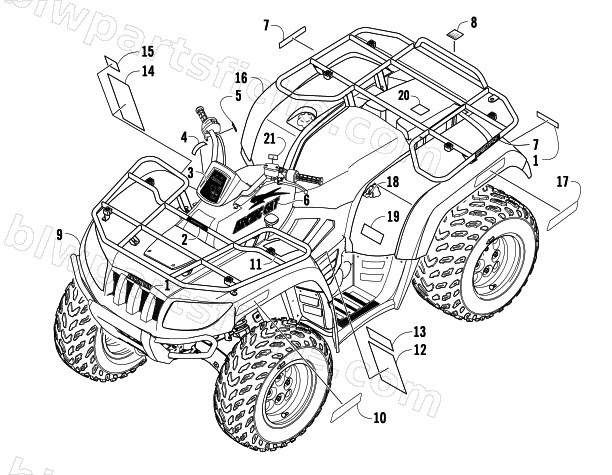

2008 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC FIS — BODY PANELS AND DECALS
2008 700 H1 EFI 4X4 AUTOMATIC FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-840 | DECAL"ARCTIC CAT"REAR FENDER-RH(RACE) | 1 | $12.35 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 3 | 1411-564 | DECAL,POD-700 H1 EFI | 1 | $17.87 | |
| 4 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 6 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 7 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 8 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 9 | 2516-058 | FENDER,FRONT - ASSEMBLY (SILVER) | 1 | $1,112.95 | |
| 10 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 10 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 11 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 12 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 13 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 14 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 15 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 16 | 2516-077 | FENDER,REAR - ASSEMBLY (SILVER) | 1 | $1,020.95 | |
| 17 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 17 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 18 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 19 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 20 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 21 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 |
