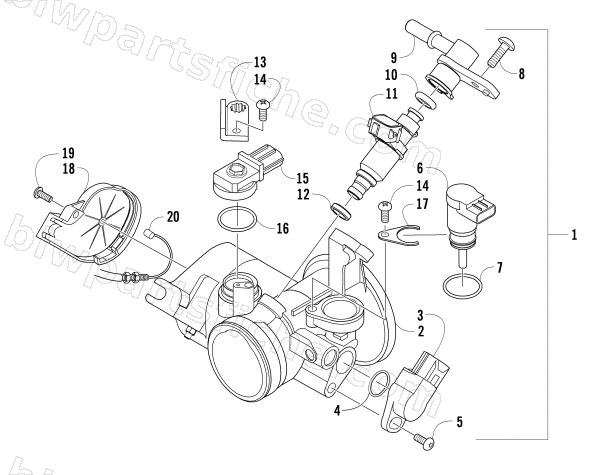

2008 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC FIS — THROTTLE BODY ASSEMBLY
2008 700 H1 EFI 4X4 AUTOMATIC FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-753 | THROTTLE BODY-ASSY | 1 | $743.95 | |
| 3 | 0430-072 | SENSOR,THROTTLE POSITION | 1 | $144.95 | |
| 4 | 5507-234 | O-RING,TPS | 1 | $1.37 | |
| 5 | 5507-231 | SCREW,TPS | 1 | $1.78 | |
| 6 | 0430-074 | VALVE,ISC | 1 | $252.95 | |
| 7 | 5507-233 | O-RING,ISC | 1 | $3.44 | |
| 8 | 5507-238 | SCREW,FUEL RAIL-W/WASHER | 1 | $3.02 | |
| 9 | 0470-687 | RAIL,FUEL-700 H1 | 1 | $74.95 | |
| 10 | 0470-767 | O-RING,FUEL INJECTOR | 1 | $3.44 | |
| 11 | 0470-762 | INJECTOR,FUEL | 1 | $169.95 | |
| 12 | 0470-768 | SEAL-RING,FUEL INJECTOR | 1 | $6.20 | |
| 13 | 5507-227 | BRACKET,MAP SENSOR | 1 | $13.73 | |
| 14 | 5507-117 | SCREW | 1 | $1.23 | |
| 15 | 0430-073 | SENSOR,MAP | 1 | $150.95 | |
| 16 | 5507-232 | O-RING,MAP SENSOR | 1 | $1.78 | |
| 17 | 5507-229 | PLATE,ISC | 1 | $2.88 | |
| 18 | 5507-223 | COVER,THROTTLE HOUSING-EFI | 1 | $26.95 | |
| 19 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 20 | 0487-057 | CABLE,THROTTLE | 1 | $69.95 |
