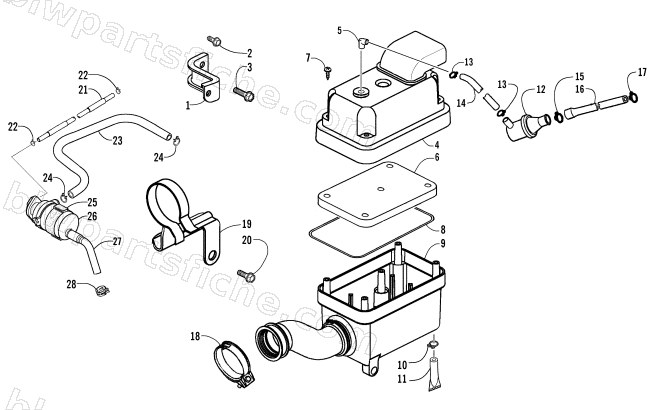

2008 Arctic Cat 90 DVX CALIFORNIA — AIR INTAKE ASSEMBLY
2008 90 DVX CALIFORNIA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-005 | STAY A/C | 1 | $5.37 | |
| 2 | 3305-458 | BOLT FLANGE 6*12(C) | 1 | $0.85 | |
| 3 | 3303-360 | BOLT FLANGE 6*25 | 1 | $0.81 | |
| 4 | 3303-062 | COVER ASSY AIR/C **(0) C.2004.11.17 | 1 | $58.95 | |
| 6 | 3303-060 | ELEMENT AIR/C | 1 | $16.49 | |
| 7 | 3305-450 | SCREW TAPPING 5X20(G) | 1 | $0.81 | |
| 8 | 3303-063 | SEAL AIR/C COVER | 1 | $5.92 | |
| 9 | 3305-314 | CASE ASSY AIR/C | 1 | $74.95 | |
| 10 | 3305-315 | CLAMP D23 | 1 | $6.20 | |
| 11 | 3304-168 | TUBE DRAIN | 1 | $10.97 | |
| 12 | 3303-064 | CATCH TANK ASSY | 1 | $20.63 | |
| 13 | 3303-350 | CLIP B12.5 TUBE | 1 | $0.95 | |
| 14 | 3303-002 | TUBE B | 1 | $4.40 | |
| 15 | 3303-052 | CLIP BREATHER TUBE | 1 | $1.78 | |
| 16 | 3303-001 | TUBE A | 1 | $9.59 | |
| 17 | 3303-352 | CLIP C9 TUBE | 1 | $1.50 | |
| 18 | 3303-288 | BAND CONN TUBE | 1 | $3.71 | |
| 19 | 3303-287 | BAND ASSY AIR/C TUBE | 1 | $8.21 | |
| 20 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 21 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 22 | 3304-161 | CLIP B7 TUBE | 1 | $1.37 | |
| 23 | 3305-598 | DUCT,AIR-AICV | 1 | $19.25 | |
| 24 | 3004-167 | RACE, MIDDLE CRANK SEAL | 1 | $102.95 | |
| 25 | 3305-355 | RUBBER AICV MOUNT | 1 | $3.95 | |
| 26 | 3305-599 | AI/C-AICV ASSY | 1 | $58.95 | |
| 27 | 3305-597 | DUCT,AICV-REED VALVE | 1 | $20.63 | |
| 28 | 3303-712 | CLIP BREATHER TUBE | 1 | $2.33 |
