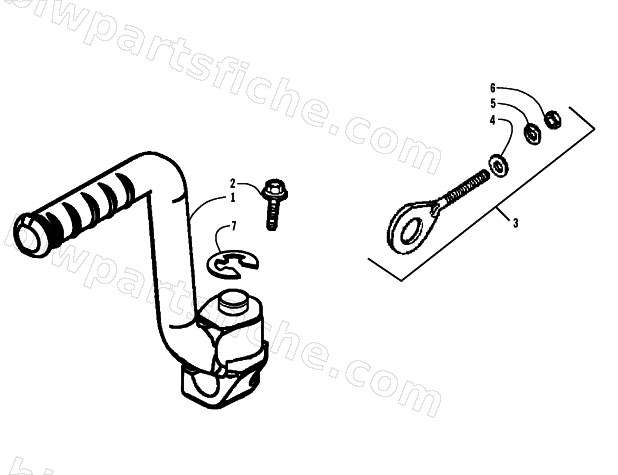

2008 Arctic Cat 90 UTILITY — KICK STARTER ASSEMBLY
2008 90 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-123 | ARM ASSY KICK STARTER | 1 | $54.95 | |
| 2 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 3 | 3303-147 | DRIVE CHAIN ADJUSTER ASSY | 1 | $6.34 | |
| 4 | 3304-135 | WASHER PLAIN 8MM | 1 | $0.85 | |
| 5 | 3303-607 | WASHER SPRING 8MM | 1 | $0.81 | |
| 6 | 3304-125 | NUT HEX 8MM | 1 | $0.81 | |
| 7 | 3305-247 | E-RING 10mm | 1 | $1.78 |
