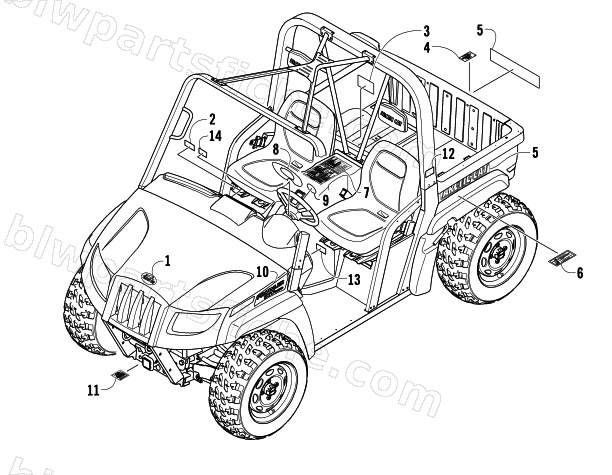

2008 Arctic Cat PROWLER 650 H1 AUTOMATIC 4X4 — DECALS
2008 PROWLER 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-789 | DECAL,HOOD-"PROWLER" | 1 | $33.95 | |
| 2 | 1411-124 | DECAL,WARNING-DIFF LOCK | 1 | $3.30 | |
| 3 | 1411-119 | DECAL,WARNING-CARGO (600#) | 1 | $16.49 | |
| 4 | 1411-123 | DECAL,WARNING-TOWING RR | 1 | $5.65 | |
| 5 | 1411-539 | DECAL,BOX-"ARCTIC CAT"(PROWLER) | 1 | $33.95 | |
| 6 | 1411-120 | DECAL,WARNING-PINCH POINT | 1 | $4.95 | |
| 7 | 1411-126 | DECAL,WARNING-CONSOLE | 1 | $26.95 | |
| 8 | 1411-125 | DECAL,WARNING-DASH | 1 | $19.25 | |
| 9 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 | |
| 10 | 1411-790 | DECAL,SIDE RH "650" STANDARD | 1 | $50.95 | |
| 10 | 1411-791 | DECAL,SIDE LH "650" STANDARD | 1 | $50.95 | |
| 11 | 1411-122 | DECAL,WARNING-TOWING FR | 1 | $5.65 | |
| 12 | 1411-295 | DECAL,WARNING-CANOPY | 1 | $12.35 | |
| 13 | 1411-330 | DECAL, BRAKE RELEASE | 1 | $4.95 | |
| 14 | 1411-904 | DECAL,STARTING | 1 | $12.35 |
