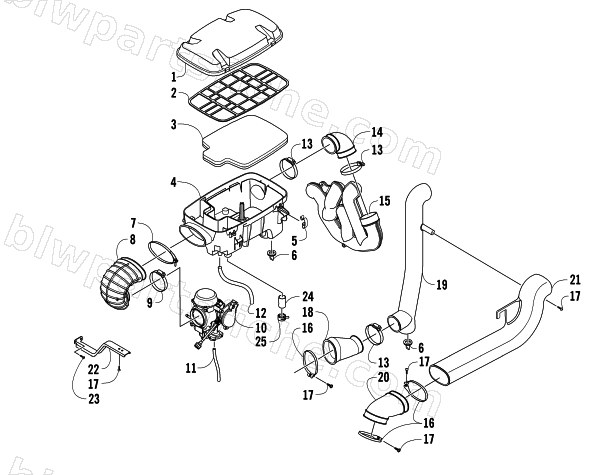

2008 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — AIR INTAKE ASSEMBLY
2008 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 2 | 0470-560 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 3 | 0470-558 | FILTER,AIR | 1 | $42.95 | |
| 4 | 0470-675 | AIR BOX,BOTTOM | 1 | $85.95 | |
| 5 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 6 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 7 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 8 | 0470-525 | BOOT, AIR CLEANER | 1 | $79.95 | |
| 9 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 10 | 0470-742 | CARB,CVK 36-AE (W/PUMPER)(PROWLER) | 1 | $486.95 | |
| 11 | 0510-593 | HOSE,CARB DRAIN | 1 | $8.21 | |
| 12 | 0410-172 | HOSE,VENT-CRANKCASE | 1 | $26.95 | |
| 13 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 14 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 15 | 0513-024 | DUCT,AIR-IN - WELDT | 1 | $37.95 | |
| 16 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 17 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 18 | 0413-049 | BOOT, COOLING-BELT | 1 | $30.95 | |
| 19 | 0413-188 | DUCT | 1 | $56.95 | |
| 20 | 0413-109 | BOOT,AIR OUT | 1 | $20.63 | |
| 21 | 0413-189 | DUCT,CLUTCH OUT | 1 | $42.95 | |
| 22 | 2506-651 | BRACKET,MOUNT-AIR BOX-PAINTED BLACK | 1 | $26.95 | |
| 23 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 24 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 25 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 |
