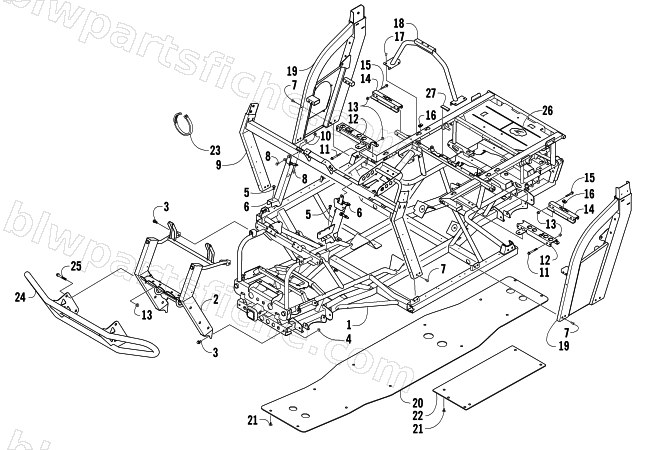

2008 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — FRAME AND RELATED PARTS
2008 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-497 | FRAME-FAB (PROWLER ST/MT) | 1 | $2,823.95 | |
| 2 | 2516-558 | BUMPER,XT/X-PTD BLACK | 1 | $324.95 | |
| 3 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 4 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 6 | 1506-797 | BRACKET,STEERING SUPPORT-PAINTED | 1 | $114.95 | |
| 6 | 0502-853 | BRACKET,STEERING SUPPORT-PAINTED | 1 | $140.95 | |
| 7 | 0423-642 | SCREW,MACH-TSTRH M8X1.25 X 20 BLK CL8.8 | 1 | $1.23 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 0505-513 | STEERING,SUPPORT-PAINTED | 1 | $468.95 | |
| 10 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 11 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 12 | 1506-844 | BRACKET,SEAT-SUPPORT-FRONT-RH-PTD BLK | 1 | $62.95 | |
| 12 | 1506-845 | BRACKET,SEAT-SUPPORT-FRONT-LH-PTD BLK | 1 | $64.95 | |
| 13 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 1506-842 | BRACKET,SEAT-SUPPORT-REAR-PAINTED BLK | 1 | $23.39 | |
| 15 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 16 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 17 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 18 | 2506-638 | CANOPY SUPPORT-BLACK | 1 | $108.95 | |
| 19 | 2506-634 | SUPPORT,OVERHEAD-RH-BLACK | 1 | $324.95 | |
| 19 | 2506-635 | SUPPORT,OVERHEAD-LH-BLACK | 1 | $324.95 | |
| 20 | 1406-720 | PANEL,BELLY | 1 | $163.95 | |
| 21 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 22 | 1406-721 | PANEL,BELLY-SIDE | 1 | $90.95 | |
| 23 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 24 | 2506-783 | BUMPER,PUSH-PAINTED | 1 | $205.95 | |
| 25 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 26 | 0412-461 | SHIELD,HEAT-CHASSIS | 1 | $15.11 | |
| 27 | 0406-879 | BUMPER, SEAT | 1 | $3.71 |
