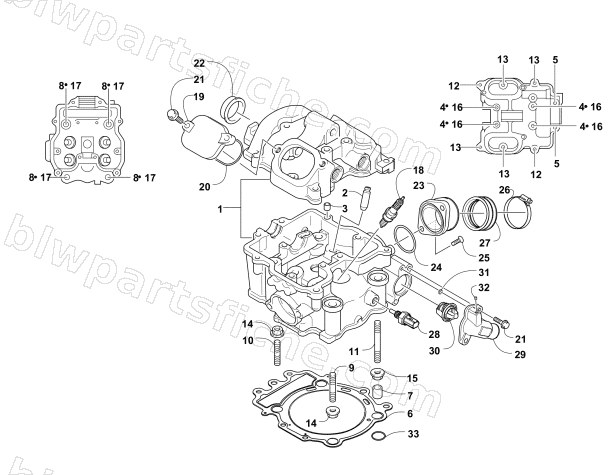

2008 Arctic Cat PROWLER XTX 700 H1 AUTOMATIC 4X4 — CYLINDER HEAD ASSEMBLY
2008 PROWLER XTX 700 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0808-226 | HEAD,CYLINDER-FINAL ASSY | 1 | $696.95 | |
| 3 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 4 | 0826-001 | SCREW,CAP HFH M6 x 1 x 55 | 1 | $1.95 | |
| 5 | 0826-002 | SCREW,CAP HFH M6 x 1 x 30 | 1 | $1.50 | |
| 6 | 0830-112 | GASKET,CYLINDER HEAD A700 | 1 | $86.95 | |
| 7 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 8 | 0808-037 | R/B 0808-259 | 1 | $22.95 | |
| 9 | 0827-054 | STUD,M6 X 1.0 X 76 | 1 | $5.51 | |
| 10 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 11 | 0827-031 | STUD, M8 x 1.25 x 80 | 1 | $5.78 | |
| 12 | 0826-005 | SCREW,CAP HFH M6 x 1 x 35 | 1 | $2.33 | |
| 13 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 14 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 15 | 8424-804 | NUT,HEX-FLG M8X1.25 CL8 RIE SIL | 1 | $0.95 | |
| 16 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 17 | 0830-147 | WASHER,STEEL,10X22X2.3 | 1 | $0.95 | |
| 18 | 0217-799 | SPARK PLUG, CPR8E | 1 | $10.97 | |
| 19 | 0808-003 | CAP, VALVE INSPECTION | 1 | $13.73 | |
| 20 | 0830-004 | O-RING, INSPECTION CAP | 1 | $3.71 | |
| 21 | 0826-007 | SCREW,CAP HFH M6 x 1 x 20 | 1 | $1.09 | |
| 22 | 0808-077 | PLUG,CYLINDER HEAD | 1 | $12.35 | |
| 23 | 0470-668 | FLANGE,INTAKE MANIFOLD-CAST | 1 | $30.95 | |
| 24 | 0830-090 | O-RING, INTAKE MANIFOLD | 1 | $1.09 | |
| 25 | 0826-008 | SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC | 1 | $1.50 | |
| 26 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 27 | 0437-069 | KIT,SERVICE- INTAKE BOOT W/ CLAMP | 1 | $20.63 | |
| 28 | 0808-124 | SENSOR,WATER TEMP.-ASSY | 1 | $26.95 | |
| 29 | 0808-165 | COVER,THERMOSTAT-700H1 PRLR | 1 | $39.95 | |
| 30 | 0808-078 | THERMOSTAT (65 DEG) | 1 | $37.95 | |
| 31 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 32 | 0830-169 | PLUG,CV,DIA 4MM | 1 | $16.49 | |
| 33 | 0830-113 | O-RING,CYL.HEAD-10.8X1.78 | 1 | $1.78 |
