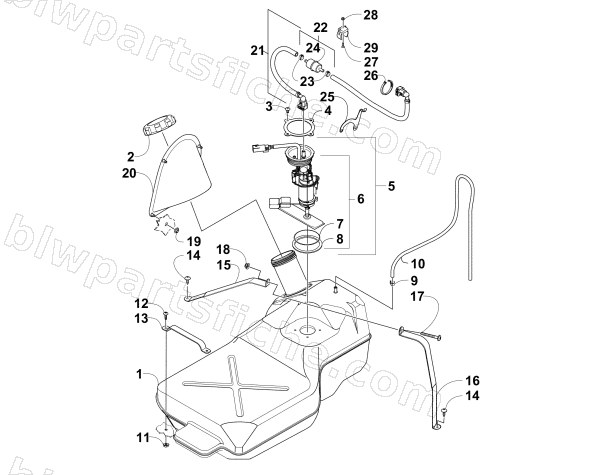

2008 Arctic Cat PROWLER XTX 700 H1 AUTOMATIC 4X4 — GAS TANK ASSEMBLY
2008 PROWLER XTX 700 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-203 | R/B 0570-485 | 1 | $498.95 | |
| 2 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 3 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 4 | 0470-606 | MOUNT,FUEL PUMP | 1 | $23.39 | |
| 5 | 0570-272 | PUMP,FUEL-ASSEMBLY (PFA-102) | 1 | $992.95 | |
| 6 | 0570-256 | SENDER,FUEL LEVEL-KIT | 1 | $180.95 | |
| 7 | 0470-614 | SEAL,FUEL PUMP | 1 | $20.63 | |
| 8 | 0470-613 | SEAL,FUEL PUMP | 1 | $2.88 | |
| 9 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 13 | 0470-544 | BRACKET,FUEL TANK MOUNT | 1 | $16.49 | |
| 14 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 15 | 0470-829 | STRAP,FUEL TANK | 1 | $30.95 | |
| 16 | 0470-830 | STRAP,FUEL TANK | 1 | $30.95 | |
| 17 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 20 | 1406-886 | INSERT,FUEL CAP | 1 | $20.63 | |
| 21 | 0570-245 | HOSE,FUEL-ASSEMBLY | 1 | $164.95 | |
| 22 | 0570-246 | FILTER,FUEL-KIT | 1 | $51.95 | |
| 25 | 0470-796 | BRACKET, FUEL HOSE | 1 | $12.35 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
