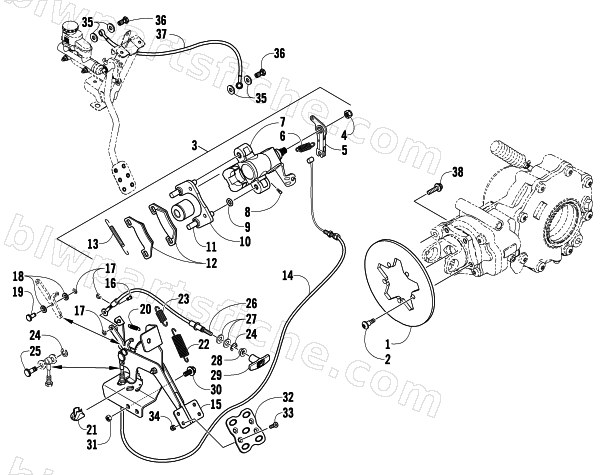

2008 Arctic Cat PROWLER XTX 700 H1 AUTOMATIC 4X4 — REAR AND PARKING BRAKE ASSEMBLY
2008 PROWLER XTX 700 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-710 | ROTOR-MACH (DURABAR) | 1 | $126.95 | |
| 2 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 3 | 1502-143 | CALIPER,MECHANICAL/HYDRAULIC | 1 | $398.95 | |
| 4 | 0502-988 | NUT,PARKING BRAKE ACTUATOR | 1 | $5.51 | |
| 5 | 1502-160 | KIT-ACTUATION LEVER W/SPRING HOLE | 1 | $56.95 | |
| 6 | 0502-985 | SPRING,PARKING BRAKE | 1 | $13.73 | |
| 8 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 10 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 12 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 13 | 1502-161 | KIT,PAD SPRINGS-ANTI/RATTLE | 1 | $22.01 | |
| 14 | 0487-036 | CABLE,PARKING BRAKE | 1 | $100.95 | |
| 15 | 1502-354 | PARKING BRAKE ASSY W/O CABLE | 1 | $260.95 | |
| 16 | 1502-030 | PIN,C | 1 | $38.95 | |
| 17 | 0423-667 | E-CLIP,4.0 MM | 1 | $0.68 | |
| 18 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 19 | 1502-028 | PIN,A | 1 | $35.95 | |
| 20 | 1502-027 | SPRING,B | 1 | $42.95 | |
| 21 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 22 | 1502-026 | SPRING,A | 1 | $64.95 | |
| 23 | 1502-360 | SPRING,C | 1 | $5.95 | |
| 24 | 0423-668 | E-CLIP,7.0 MM | 1 | $1.09 | |
| 25 | 1502-361 | PIN,B | 1 | $12.35 | |
| 26 | 0487-064 | CABLE,BRAKE RELEASE | 1 | $69.95 | |
| 27 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 28 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 29 | 1502-024 | HANDLE | 1 | $20.63 | |
| 30 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 31 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 32 | 1502-324 | PAD,PARKING BRAKE-BLACK | 1 | $17.87 | |
| 33 | 8474-516 | SCREW,MACH-TSFH M5X0.8X16 CL8.8 BLK | 1 | $0.68 | |
| 34 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 35 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 36 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 37 | 1402-388 | HOSE,BRAKE-REAR | 1 | $148.95 | |
| 38 | 8408-836 | SCREW,CAP-HFH M8X1.25X35 CL8.8 w/2353 | 1 | $2.47 |
