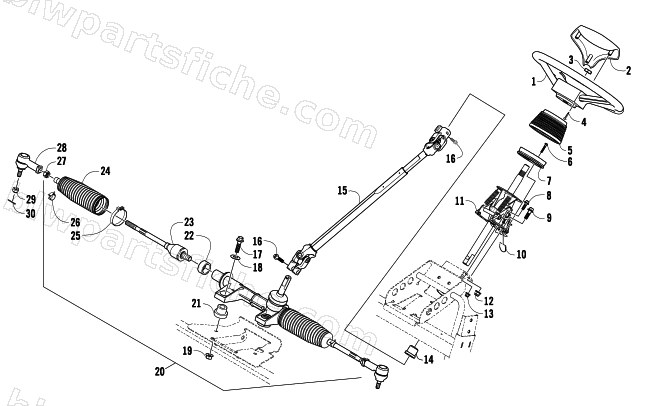

2008 Arctic Cat PROWLER XTX 700 H1 AUTOMATIC 4X4 — STEERING POST ASSEMBLY
2008 PROWLER XTX 700 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-884 | WHEEL,STEERING-ASSEMBLY | 1 | $174.95 | |
| 2 | 0405-239 | COVER,WHEEL | 1 | $30.95 | |
| 3 | 1670-477 | NUT,HEX - M16 X 2.0 Z&C | 1 | $0.95 | |
| 4 | 0423-613 | SCREW,SELF TAP-TSPNH#8-18X3/4 T-20 SS | 1 | $1.09 | |
| 5 | 0405-270 | BOOT,TILT STEERING | 1 | $52.95 | |
| 6 | 0423-743 | SCREW,SELF-TAP M4X0.7X25 | 1 | $0.68 | |
| 7 | 0405-258 | SUPPORT,BOOT | 1 | $12.35 | |
| 8 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 9 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 10 | 2406-590 | CAP,TILT LEVER | 1 | $2.06 | |
| 11 | 0505-886 | MECHANISM, TILT (YELLOW ZINC SHAFT) | 1 | $393.95 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 0405-155 | BUSHING,STEERING | 1 | $10.97 | |
| 15 | 0405-156 | SHAFT, LOWER STEERING - ASSEMBLY | 1 | $283.95 | |
| 16 | 0423-655 | BOLT,PINCH(M10X1.5) | 1 | $2.06 | |
| 17 | 8409-050 | SCREW,CAP-HFH M10X1.25X50 CL10.9 Z&Y | 1 | $1.92 | |
| 18 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 19 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 20 | 0505-650 | KIT,STEERING ASSY-RACK AND PINION | 1 | $819.95 | |
| 21 | 0405-238 | BUSHING,MOUNTING | 1 | $87.95 | |
| 22 | 0405-206 | SPACER,RACK | 1 | $33.95 | |
| 23 | 0505-638 | TIE ROD KIT, INNER-W/ ROD END | 1 | $167.95 | |
| 24 | 0405-216 | BOOT,RACK | 1 | $35.95 | |
| 25 | 0405-237 | CLAMP,BOOT | 1 | $3.71 | |
| 26 | 0405-236 | CLAMP,TIE ROD END | 1 | $2.19 | |
| 27 | 0423-622 | NUT,HEX-M12X1.5 Z & C | 1 | $0.95 | |
| 28 | 0505-743 | ROD END KIT-STEERING RACK | 1 | $47.95 | |
| 29 | 0423-072 | NUT,HEX CASTLE M10-1.25 | 1 | $2.61 | |
| 30 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 |
