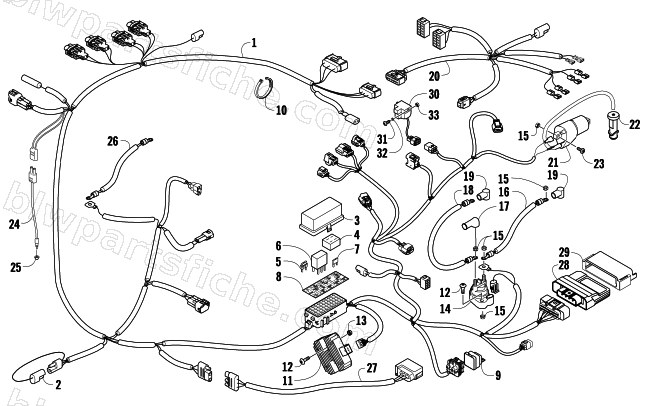

2008 Arctic Cat PROWLER XTX 700 H1 AUTOMATIC 4X4 — WIRING HARNESS ASSEMBLY
2008 PROWLER XTX 700 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-274 | HARNESS/DIA,MAIN (08 XTX) | 1 | $794.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-526 | DECAL,PDM (08 H2) | 1 | $100.95 | |
| 9 | 0430-052 | RELAY,SPDT-30A WP | 1 | $30.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 12 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 13 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 14 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0445-061 | CABLE,SOLENOID-STARTER (40" RED #6) | 1 | $42.95 | |
| 17 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 18 | 0445-049 | CABLE,BATTERY-SOLENOID (18" RED #6) | 1 | $27.95 | |
| 19 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 20 | 0486-275 | HARNESS,CONSOLE (08 XTX) | 1 | $122.95 | |
| 21 | 0824-043 | COIL,IGNITION-EFI INDUCTIVE | 1 | $252.95 | |
| 22 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 23 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 24 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 25 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 26 | 0445-050 | CABLE,BATTERY-ENGINE (40" BLK #6) | 1 | $42.95 | |
| 27 | 0486-176 | HARNESS,ADAPTER-TAILLIGHT 06 PROWLER | 1 | $37.95 | |
| 28 | 0530-013 | R/B 0530-029 | 1 | $667.95 | |
| 29 | 0430-076 | CUSHION,CASE-ECU | 1 | $13.73 | |
| 30 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 31 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 32 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 33 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 |
