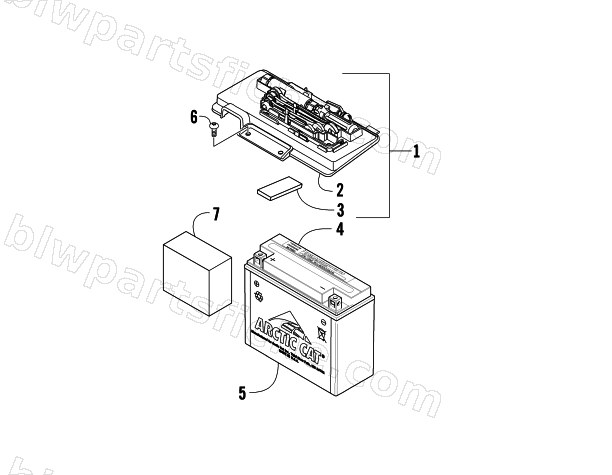

2008 Arctic Cat THUNDERCAT AUTOMATIC TRANSMISSION 4X4 — BATTERY ASSEMBLY
2008 THUNDERCAT AUTOMATIC TRANSMISSION 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 1 | 5993-040 | TRAY,TOOL-ASSY | 1 | $100.95 | |
| 2 | 4406-136 | COVER,BATTERY/TOOL TRAY | 1 | $69.95 | |
| 3 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 4 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 5 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 6 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 7 | 0417-012 | FOAM,BATTERY | 1 | $2.88 |
