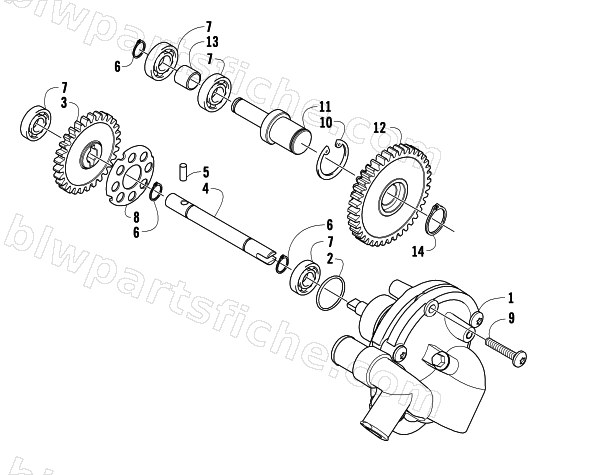

WATER PUMP ASSEMBLY
2008 THUNDERCAT AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0813-090 | KIT,WATERPUMP-SC CASE | 1 | $292.95 | |
| 2 | 0830-029 | O-RING, 32.5 ID X 2 W | 1 | $1.64 | |
| 3 | 0813-029 | GEAR,DRIVEN-WATERPUMP | 1 | $129.95 | |
| 4 | 0813-030 | SHAFT,WATERPUMP-DRIVEN GEAR | 1 | $33.95 | |
| 5 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 6 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 7 | 0832-046 | BEARING,SHAFT | 1 | $16.49 | |
| 8 | 0801-089 | DISC,BREATHER | 1 | $21.95 | |
| 9 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 10 | 0831-004 | CIRCLIP, SHAFT BEARING | 1 | $3.44 | |
| 11 | 0813-060 | SHAFT,WATER/OIL PUMP | 1 | $47.95 | |
| 12 | 0813-027 | GEAR,IDLER-WATERPUMP | 1 | $286.95 | |
| 13 | 0813-028 | SPACER,IDLER-WATERPUMP | 1 | $5.92 | |
| 14 | 0831-040 | RING, EXTERNAL RETAINING - DSH-17 | 1 | $0.40 |
