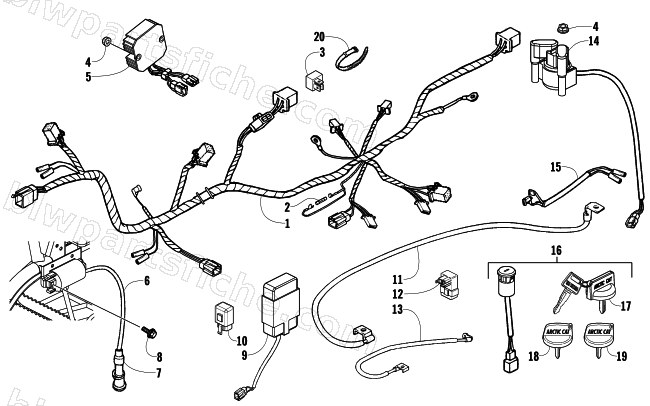

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — ELECTRICAL AND WIRING HARNESS ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-748 | HARNESS WIRE | 1 | $309.95 | |
| 2 | 3305-233 | BLADE FUSE 20A | 1 | $2.47 | |
| 3 | 3303-837 | RECTIFIER COMP DIODE | 1 | $20.63 | |
| 4 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 5 | 3303-836 | REG REC COMP | 1 | $108.95 | |
| 6 | 3305-222 | COIL,IGNITION-ASSEMBLY | 1 | $66.95 | |
| 7 | 3305-223 | CAP ASSY NOISE SUPPER | 1 | $23.39 | |
| 8 | 3303-253 | BOLT DISK | 1 | $3.57 | |
| 9 | 3305-727 | CDI | 1 | $203.95 | |
| 10 | 3303-867 | RELAY ASSY LIGHT | 1 | $47.95 | |
| 11 | 3305-225 | CABLE BAT | 1 | $23.39 | |
| 12 | 3304-523 | CONTROL ASSY LIGHTING | 1 | $100.95 | |
| 13 | 3304-969 | CABLE EARTH | 1 | $33.95 | |
| 14 | 3303-857 | SET START MAG | 1 | $58.95 | |
| 15 | 3305-012 | CABLE START MOTOR | 1 | $33.95 | |
| 16 | 3305-756 | KEY SET A - 150 | 1 | $58.95 | |
| 17 | 3304-522 | KEY COVER-ARCTIC CAT | 1 | $4.13 | |
| 18 | 3307-104 | KEY COMP / TJ / R CUT | 1 | $6.89 | |
| 19 | 3304-521 | R/B 3307-105 | 1 | $13.95 | |
| 20 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 |
